Eucalyptus Spindleless Veneer Peeling Machine

The Eucalyptus spindleless veneer peeling machine removes bark from hardwood and softwood. It is placed in front of veneer peeling machine for shuttering plywood. The modern features of this Eucalyptus spindleless veneer peeling machine improve the yield and effectiveness of plantation species.
Availability:
Quantity:

Eucalyptus spindleless veneer peeling machine



The Eucalyptus spindleless veneer peeling machine removes bark from hardwood and softwood. It is placed in front of veneer peeling machine for shuttering plywood. The modern features of this Eucalyptus spindleless veneer peeling machine improve the yield and effectiveness of plantation species.


This standard Eucalyptus spindleless veneer peeling machine system enables good capacity and good veneer thickness tolerance compared to other spidnleless laths.

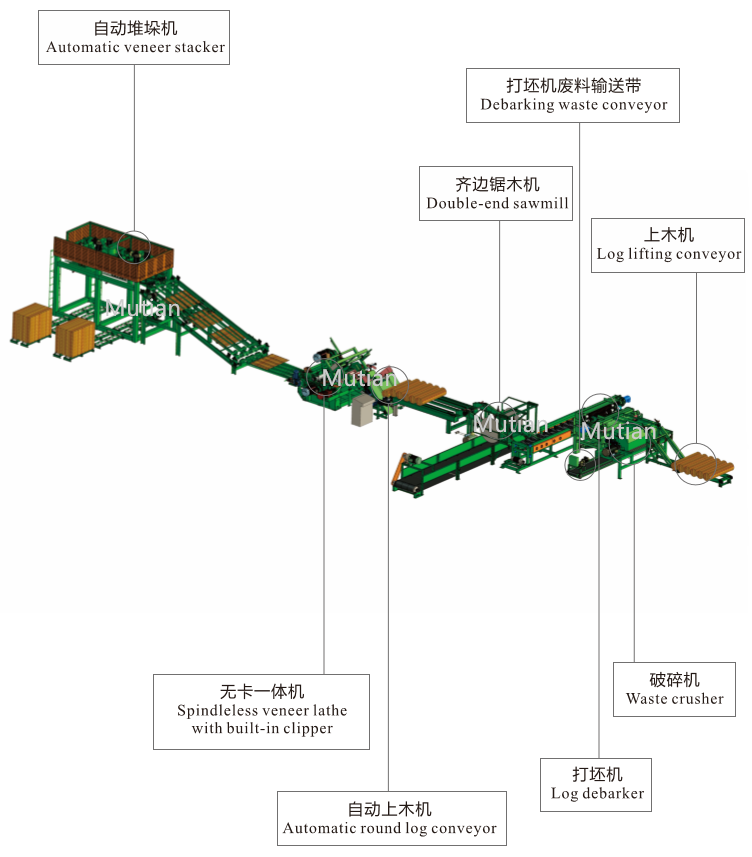

Fuzhou Mutian offers plywood wood veneer peeling machine, including spindle & India face veneer peeling machine, log debarker, wood veneer clipper, veneer stacker, plywood hot press machine, plywood cold press machince, wood veneer dryer and other related products. You may produce anything from thin decorative veneer to shuttering/film coated plywood, turning small and low quality logs into profit.


Product Specification


DESCRIPTION

UNIT

BQ1813/6YF-T

With supporter and waste

conveyor

Length of log

mm

1000-1300

Diameter of log

mm

Φ60-Φ600

Length of blade

mm

1500

Linear speed of host machine

m/min

63

Diameter of driving roller

mm

175

Diameter of pressure bar roller

mm

175

Power of driving roller

kw

11

Power of pressure bar roller

kw

11

Power of hydraulic feed

kw

7.5

Total power

kw

29.5

Total weight

kg

6000

Overall dimensions

mm

4000*2000*1714

Power of waste conveyor

kw

1.5 选配(Optional)
