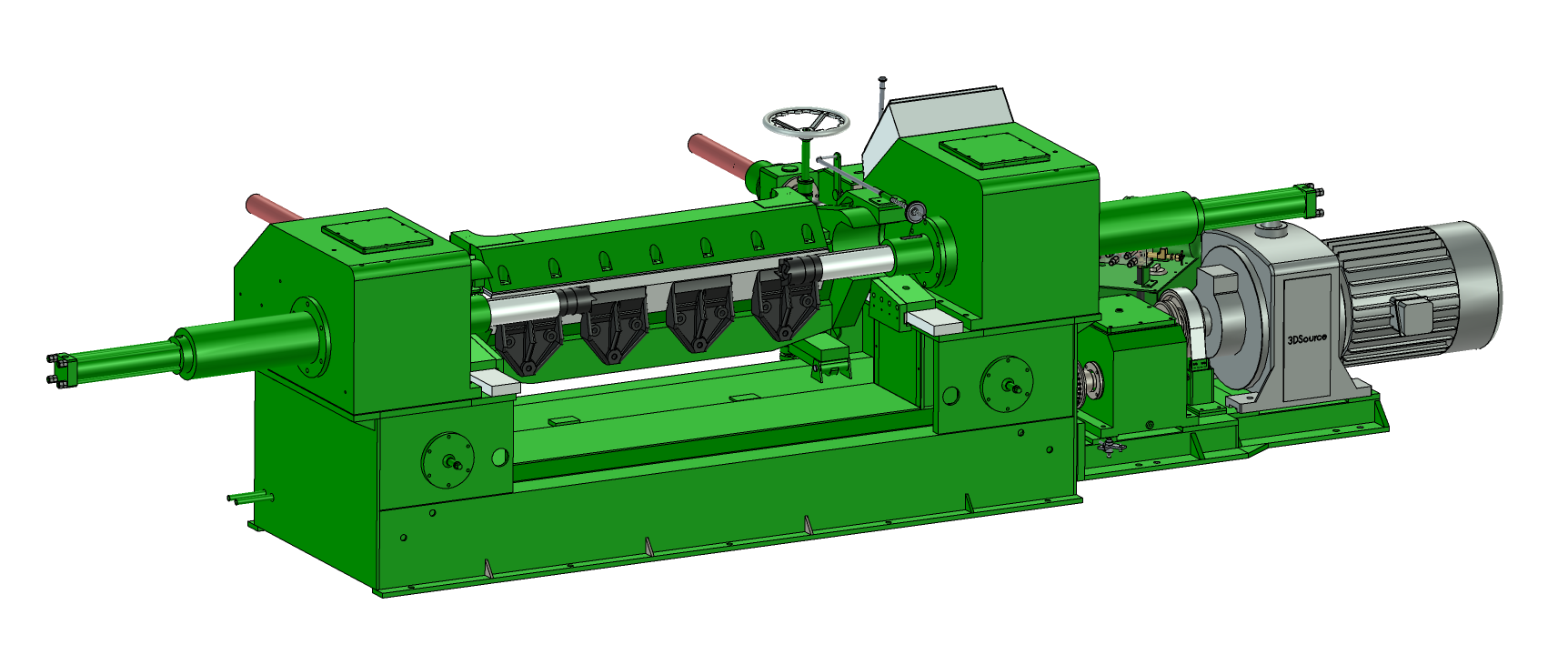

Plywood face veneer peeling machine is used to peel face veneer for shuttering plywood production.
Plywood veneer peeling consists of log centering, peeling, clipping and stacking. The peeling process
determines the profitability of the shuttering plywood manufacturing chain.
Availability: | |
---|---|
Quantity: | |
Plywood face veneer peeling machine is used to peel face veneer for shuttering plywood production.
Plywood veneer peeling consists of log centering, peeling, clipping and stacking. The peeling process determines the profitability of the shuttering plywood manufacturing chain.
Plywood is panel manufactured from several thin layers of wood veneer that are glued together. Several layers of thin wood veneer make plywood as one of the most resistant,durable and stable material in the construction material.
DESCRIPTION | UNIT | BQ1213/10 |
Length of log | mm | 800-1300 |
Diameter of log | mm | 110-1000 |
Length of blade | mm | 1400 |
Diameter of chuck | mm | 100 |
Thickness of veneer | mm | 0.3-3.6 |
Speed of chuck | r/min | 0-140 |
Main motor power | kw | 30(Motor can be DC motor) |
Fast-forward motor power | kw | 2.2 |
Power of hydraulic station | kw | 3 |
Total power | kw | 35.2 |
Total weight | kg | 5500 |
Overall Dimensions | mm | 6250*1700*1500 |
Plywood face veneer peeling machine is used to peel face veneer for shuttering plywood production.
Plywood veneer peeling consists of log centering, peeling, clipping and stacking. The peeling process determines the profitability of the shuttering plywood manufacturing chain.
Plywood is panel manufactured from several thin layers of wood veneer that are glued together. Several layers of thin wood veneer make plywood as one of the most resistant,durable and stable material in the construction material.
DESCRIPTION | UNIT | BQ1213/10 |
Length of log | mm | 800-1300 |
Diameter of log | mm | 110-1000 |
Length of blade | mm | 1400 |
Diameter of chuck | mm | 100 |
Thickness of veneer | mm | 0.3-3.6 |
Speed of chuck | r/min | 0-140 |
Main motor power | kw | 30(Motor can be DC motor) |
Fast-forward motor power | kw | 2.2 |
Power of hydraulic station | kw | 3 |
Total power | kw | 35.2 |
Total weight | kg | 5500 |
Overall Dimensions | mm | 6250*1700*1500 |
