Spindleless Core Veneer Peeling Machine

Spindleless core veneer peeling machine is used to peel core veneer for plywood production. As an important machine of plywood making machine, spindleless core veneer peeling machine will be place in front of veneer clipper.
Availability:
Quantity:
inquiry Add to Basket

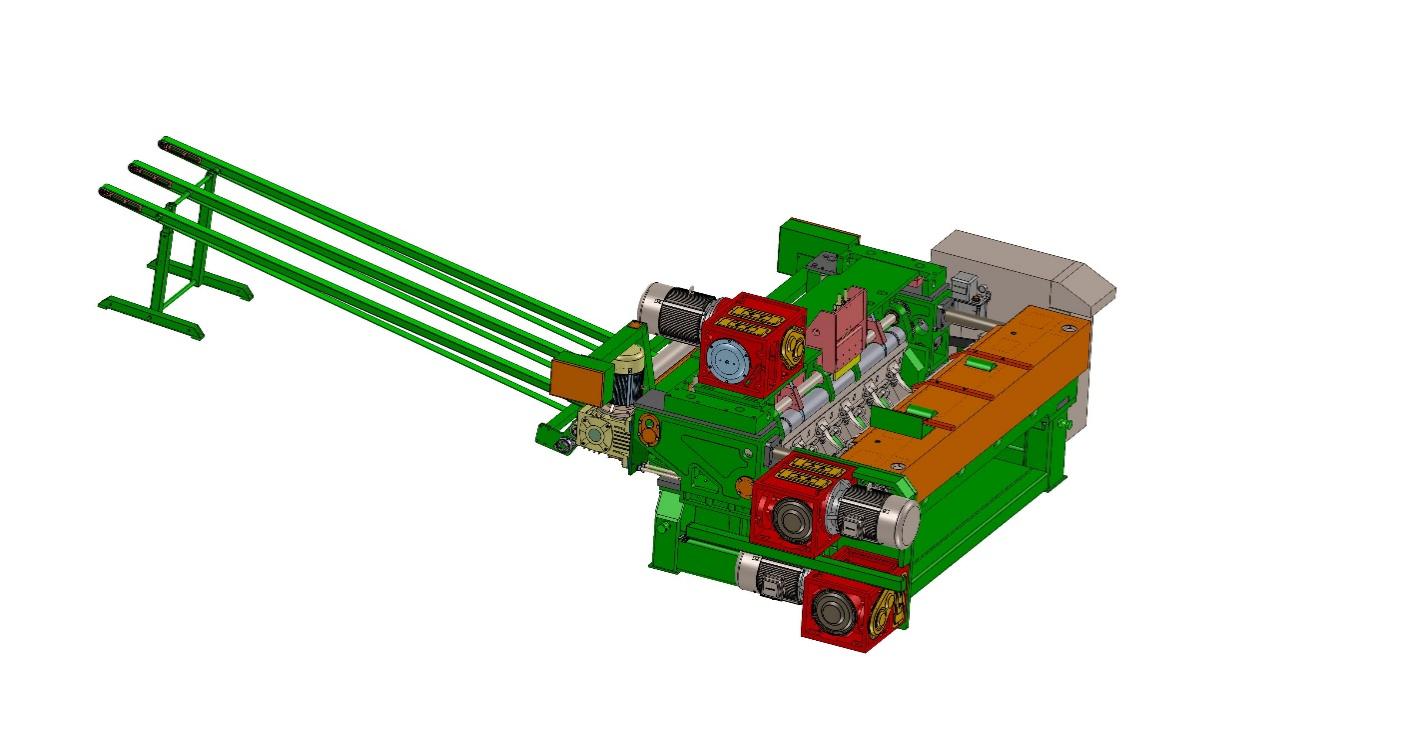

Spindleless Core Veneer Peeling Machine Manufacturer




Spindleless Core Veneer Peeling Machine Manufacturer

Wood Peeling Machine Working Process


Spindleless core veneer peeling machine is used to peel core veneer for plywood production. As an important machine of plywood making machine, spindleless core veneer peeling machine will be place in front of veneer clipper.


Plywood is a panel of wood consisting of thin veneers. It is more stronger than solid wood. As one of the reliable suppliers of plywood projects, Fuzhou Mutian produces many kinds of plywood wood veneer peeling machine, including spindle & spindleless core veneer peeling machine, log debarker, wood veneer clipper, veneer stacker, plywood hot press machine, plywood cold press machince, wood veneer dryer and other related products.


Specification


DESCRIPTION

UNIT

BQ1813/E4GS(I)-J-(Y)

Servo, Speed Roller with Inverter

(Output conveyor with

Inverter)

(Hydraulic lock )

Length of log

mm

900-1400

Diameter of log

mm

30-400

Length of blade

mm

1500

Thickness of veneer

mm

0.5-4.0

Width of cut veneer

mm

300-3000

Linear speed of host machine

m/min

0.5-2.0(max 80m/min)2.0-4.0( max 54/65 m/min)

Diameter of driving roller

mm

105

Diameter of pressure bar roller

mm

105

Diameter of rubber roller

mm

140

Power of pressure bar roller

kw

5.5*2

Power of double roller

kw

15

Power of feeding

kw

11Servo

Power of shear

kw

3

Power of output conveyor

kw

1.5

Total power

kw

41.5/43(Hydraulic lock)

Total weight

kg

6500

Overall dimensions

mm

4010*2300*1550

Images

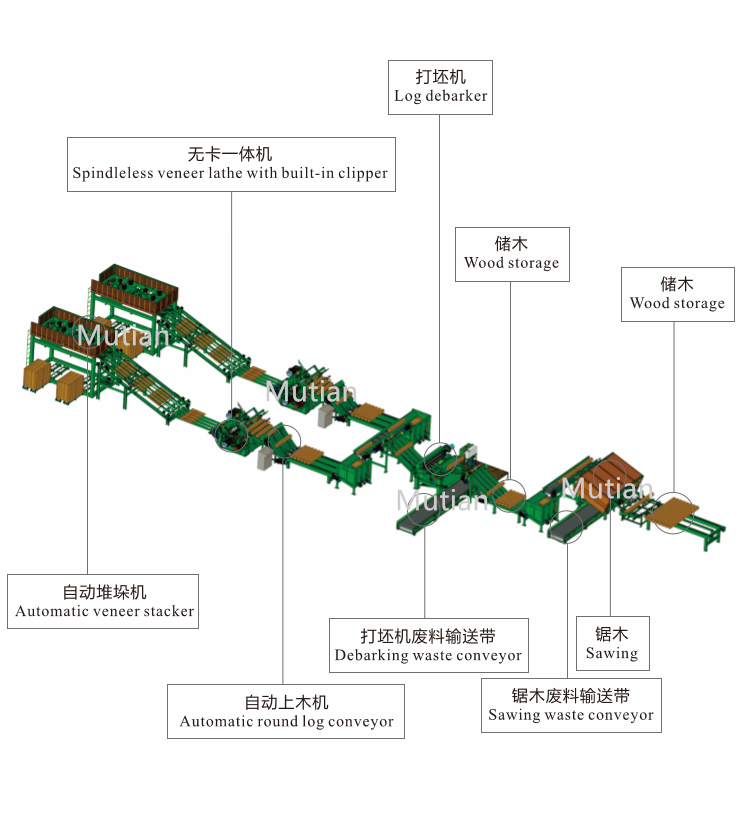

Veneer peeling

Plywood veneer peeling machine


Veneer Peeling Machine
