Indonesia Face Veneer Peeling Machine

Indonesia face veneer peeling machine is used to peel face veneer from Meranti wood.

Plywood veneer peeling consists of log centering, peeling, clipping and stacking. The peeling process

determines the profitability of the shuttering plywood manufacturing chain.

Availability:
Quantity:

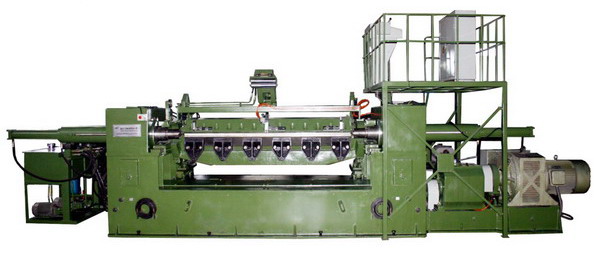

Indonesia face veneer peeling machine



Indonesia face veneer peeling machine is used to peel face veneer from Meranti wood.

Plywood veneer peeling consists of log centering, peeling, clipping and stacking. The peeling process

determines the profitability of the shuttering plywood manufacturing chain.


Plywood is panel manufactured from several thin layers of wood veneer that are glued together. Several layers of thin wood veneer make plywood as one of the most resistant, durable and stable material in the construction material.


Fuzhou Mutian offers plywood wood veneer peeling machine, including spindle & Indonesia face veneer peeling machine, log debarker, wood veneer clipper, veneer stacker, plywood hot press machine, plywood cold press machince, wood veneer dryer and other related products. You may produce anything from thin decorative veneer to shuttering/film coated plywood, turning small and low quality logs into profit.


Product Specification



DESCRIPTION

UNIT

BQ1220/10

Length of log

mm

1200-2100

Diameter of log

mm

Φ150-Φ1000

Length of blade

mm

2150

Diameter of chuck

mm

Φ130

Thickness of veneer

mm

0.3-3.6

Speed of chuck

r/min

0-140

Main motor power

kw

55

(Motor can be DC motor)

Fast-forward motor power

kw

3

Power of hydraulic station

kw

5.2

Total power

kw

63.2

Total weight

kg

11500

Overall Dimensions

mm

7550*1700*2700
