Spindleless Veneer Peeling Machine Manufacturer

Qutput And Quality

The standard Plywood spindleless veneer peeling machine is especially for India eucalyptus and rubber wood and small diameter species. The modern features of this Plywood spindleless veneer peeling machine maximize the veneer output and quality for shuttering plywood.

Fuzhou Mutian produces many kinds of plywood wood veneer peeling machine, including spindleless & spindle Plywood spindleless veneer peeling machine, log debarker, wood veneer clipper, veneer stacker, plywood hot press machine, plywood cold press machince, wood veneer dryer and other related products.We provide solutions for all wood species, hardwood and softwood.

Specification

DESCRIPTION	UNIT	BQ1813/F2GS-JD Servo, Manual speed adjustment by inverter
Length of log	mm	900-1400
Diameter of log	mm	28-300
Length of blade	mm	1400
Thickness of veneer	mm	0.8-4.0
Width of cut veneer	mm	500-1300
Linear speed of host machine	m/min	40~80m/min
Diameter of driving roller	mm	102
Diameter of pressure bar roller	mm	116
Diameter of rubber roller	mm	140
Power of pressure bar roller	kw	11
Power of double roller	kw	11
Power of feeding	kw	7.5
Power of shear	kw	3
Power of output conveyor	kw	1.5
Total power	kw	34
Total weight	kg	5500
Overall dimensions	mm	3200*2550*1600

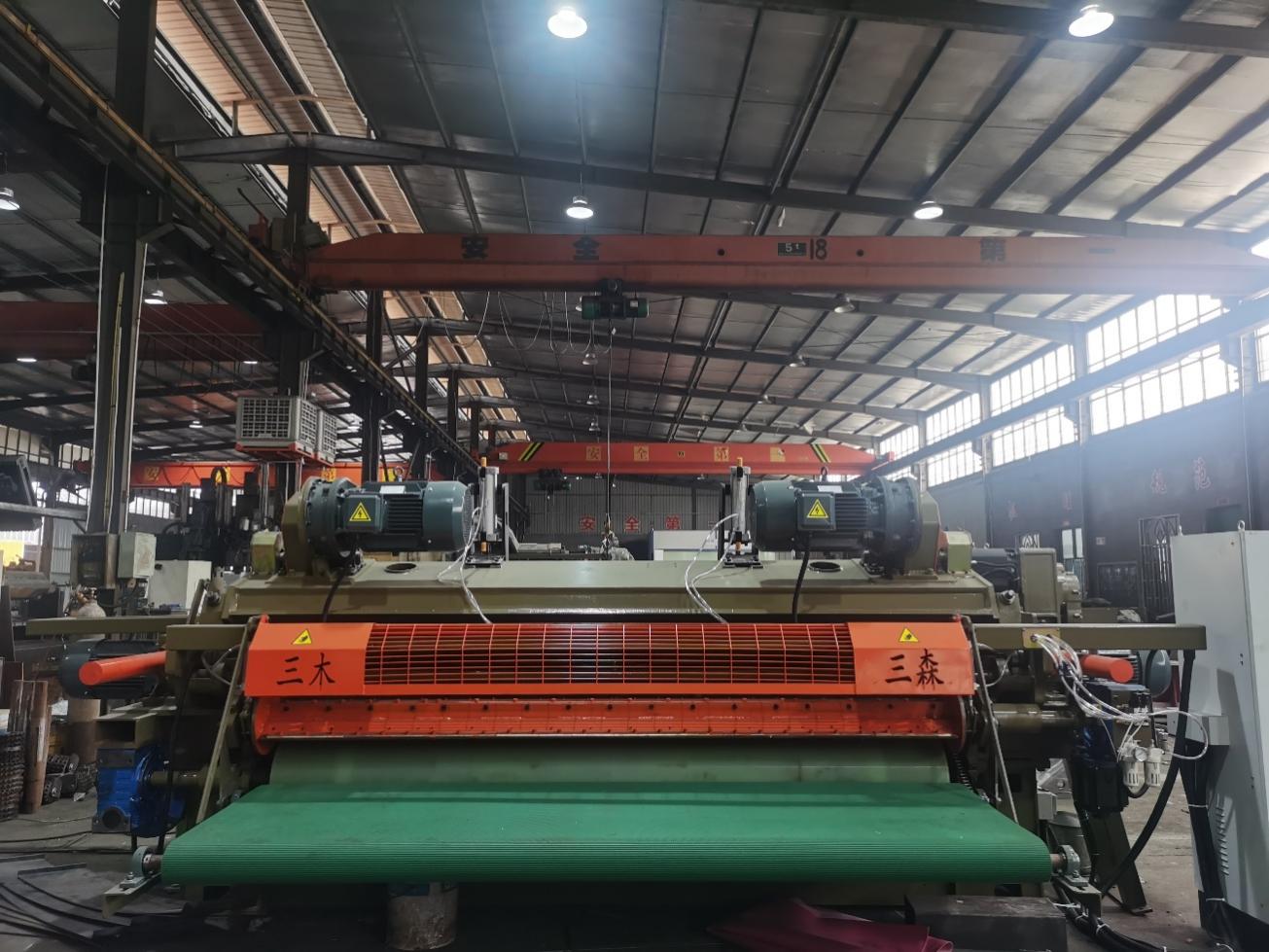

Images

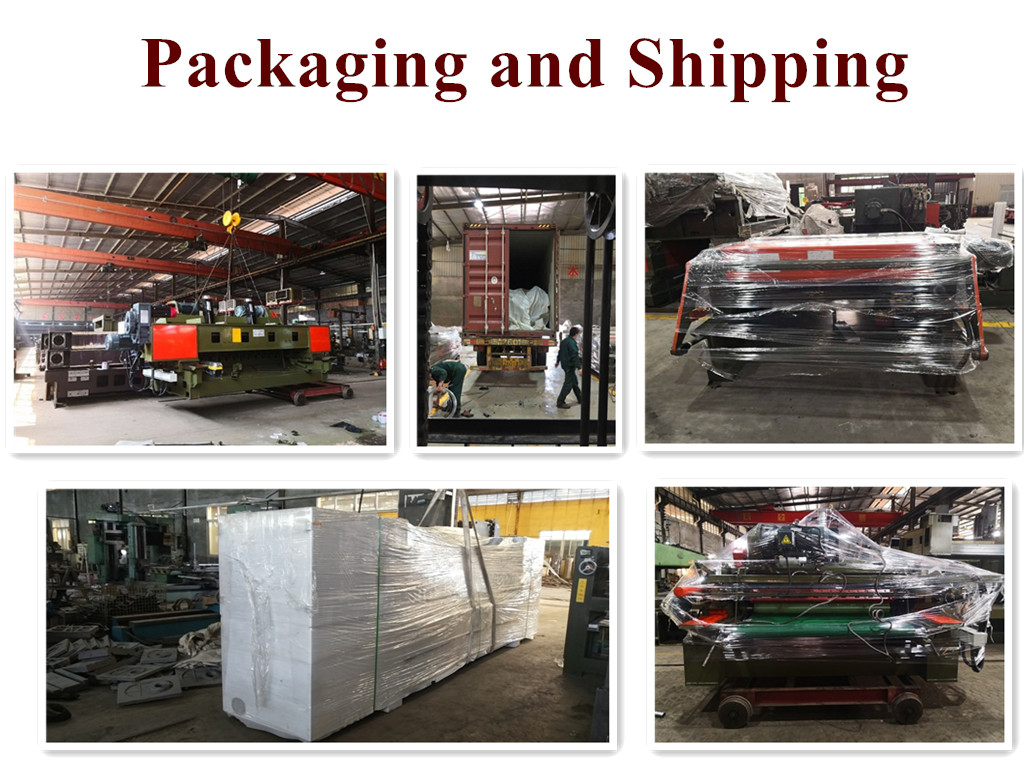

Packaging And Shipping
