Veneer peeling
Never sacrifice quality for anything. The best option for producing veneer made of both hardwood and softwood is Mutian veneer peeling lines.
Veneer peeling includes the following steps:
● Block centering
● Peeling
● Veneer Analyzing
● Clipping and stacking
Each step affects how smoothly your manufacturing runs
The peeling process determines the profitability of the entire veneer manufacturing chain and the volume of face quality sheets that can be produced. With optimal peeling and clipping, you maximize quality for further processing and increase your production capacity.

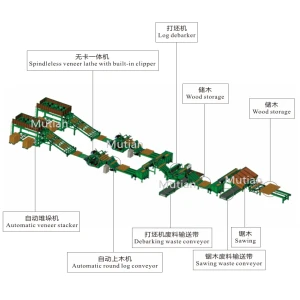

Feeding logs or lumber into the veneer peeling line is the initial stage. The logs are angled toward a sharp blade, which causes a continuous veneer layer to peel from the surface of the log. It is then peeled and trimmed to the desired length and width.You can create a variety of veneers, ranging from thin decorative ones to thick softwood ones, allowing you to turn even small and lower-quality logs into profit.
Use our veneer, plywood, LVL, and OSB manufacturing lines to start production or increase capacity with ease. Enabling a high degree of automation, a computer control system maximizes output and quality by optimizing the rotary cutting process.
Thickness of veneer: 0.8-4.0mm
Width of cut: 500-1300mm
Linear speed of host machine: 60m/min
Total power: 37.5kw
Total weight: 5500kg
Overall dimensions: 3900*2500*1600mm
Diameter of log:Φ28-Φ300mm
Length of blade:1400mm
Thickness of veneer:0.8-4.0mm
Width of cut :500-1300mm
Total power: 34kw
Overall dimensions:3200*2550*1600mm
Diameter of log:Φ28-Φ300mm
Length of blade:1400mm
Thickness of veneer:0.8-4.00.8-4.0
Width of cut:500-1300mm
Total power:34kw
Overall dimensions:3200*2550*1600mm
Thickness: 0.8-4.0mm
Width of cut: 500-2700mm
Linear speed of host machine: 50-80m/min
Power of feeding: 15 kw
Total weight: 8450kg
Overall dimensions: 4010*2600*1600mm
Length of blade:2750mm
Linear speed of host machine:47m/min
Power of feeding:7.5kw
Total power:37.5kw
Total weight:10000kg
Overall dimensions:4550*2150*1380mm
Thickness of veneer:0.3-3.6mm
Speed of chuck:0-140r/min
Main motor power:30kw
Total power:35.2kw
Total weight:5500kg
Overall Dimensions: 6250*1700*1500mm
How does a Veneer Peeler Machine Work? | |
The device usually has a rotating shaft or drum with a knife or sharp blade attached. Logs or lumber are fed into the machine and as the machine rotates relative to the cutter, continuous veneers are peeled off the surface of the log. Then trimmed to the correct length and width. |
What Types of Logs Can Be Processed? | |
The can handle a wide range of log sizes and species(both hardwood and softwood). allowing for versatility in production. |
Can Produce Different Thicknesses of Veneer? | |
Veneers of varying thicknesses can be produced by adjusting the machine's parameters, naturally. to get the thickness needed for a certain use. |
Are Veneer Peeler Machines Automated? | |
Many veneer peelers available now are run automatically. To enhance the peeling process and attain optimal yield and quality, computer control systems may be incorporated into the apparatus. Real-time configuration modifications, production monitoring, and efficiency tweaking are all possible with these automated systems. |
