Spindleless Peeling Machine for LVL

Availability:
Quantity:

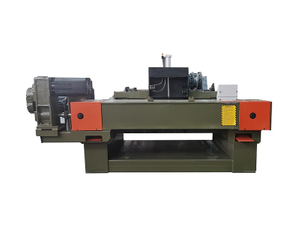

Spindleless peeling machine for LVL


LVL-Laminated veneer lumber is an engineered wood product that uses multiple layers of thin wood, oriented in the same direction, assembled with resins .LVL is made from softwood, low to medium hardwood species. As an important machine for LVL production, spindleless peeling machine for LVL will peel thick veneer. LVL strength and parameters are influenced by wood density,adhesive type and layer layout direction.


Fuzhou Mutian produces many kinds of plywood wood veneer peeling machine, including spindleless & spindle spindleless peeling machine for LVL, log debarker, wood veneer clipper, veneer stacker, plywood hot press machine, plywood cold press machince, wood veneer dryer and other related products.


Product Specification


DESCRIPTION

UNIT

BQ1813/F2SI-J

Servo

Length of log

mm

900-1400

Diameter of log

mm

Φ28-Φ300

Length of blade

mm

1400

Thickness of veneer

mm

0.8-4.0

Width of cut veneer

mm

500-1300

Linear speed of host machine

m/min

60m/min

Diameter of driving roller

mm

102

Diameter of pressure bar roller

mm

116

Diameter of rubber roller

mm

140

Power of pressure bar

roller

kw

11

Power of double roller

kw

11

Power of feeding

kw

7.5

Power of shear

kw

3

Power of output conveyor

kw

1.5

Total power

kw

34

Total weight

kg

5500

Overall dimensions

mm

3200*2550*1600
