The Plywood automatic veneer peeling machine removes bark from hardwood and softwood. The debarking efficiency influence the peeling quality and the yield of different plantation species.
This standard plywood automatic veneer peeling machine system enables good capacity and good veneer thickness tolerance compared to other spindleless lathes.

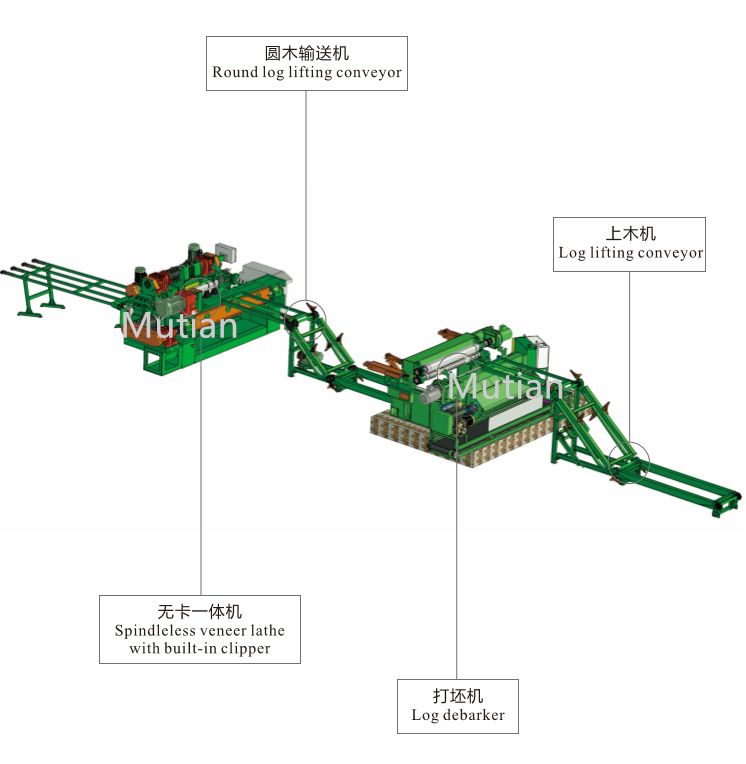

Fuzhou Mutian offers plywood wood veneer peeling machine, including spindle & India face veneer peeling machine, log debarker, wood veneer clipper, veneer stacker, plywood hot press machine, plywood cold press machince, wood veneer dryer and other related products. You may produce anything from thin decorative veneer to shuttering/film coated plywood, turning small and low quality logs into profit.
DESCRIPTION | UNIT | BQ1813/4YG(Single roller feeding) | BQ1813/4YF(Double roller feeding) |
Length of log | mm | 1000-1300 | 1000-1300 |
Diameter of log | mm | 55-400 | 55-400 |
Length of blade | mm | 1500 | 1500 |
Linear speed of host machine | m/min | 61 | 61 |
Diameter of driving roller | mm | 175 | 175 |
Diameter of pressure bar roller | mm | 175 | 175 |
Power of driving roller | kw | 7.5 | 7.5 |
Power of pressure bar roller | kw | 7.5 | 7.5 |
Power of hydraulic feed | kw | 5.5 | 5.5 |
Total power | kw | 20.5 | 20.5 |
Total weight | kg | 4800 | 4800 |
Overall dimensions | mm | 3475*1445*860 | 3475*2040*1560 |
