Rubber Wood Veneer Peeling Machine

Rubber wood veneer peeling machine is generally used in the plywood making. Spindleless rubber wood veneer peeling machine is excellent for production of rubber wood core veneer.

Availability:
Quantity:

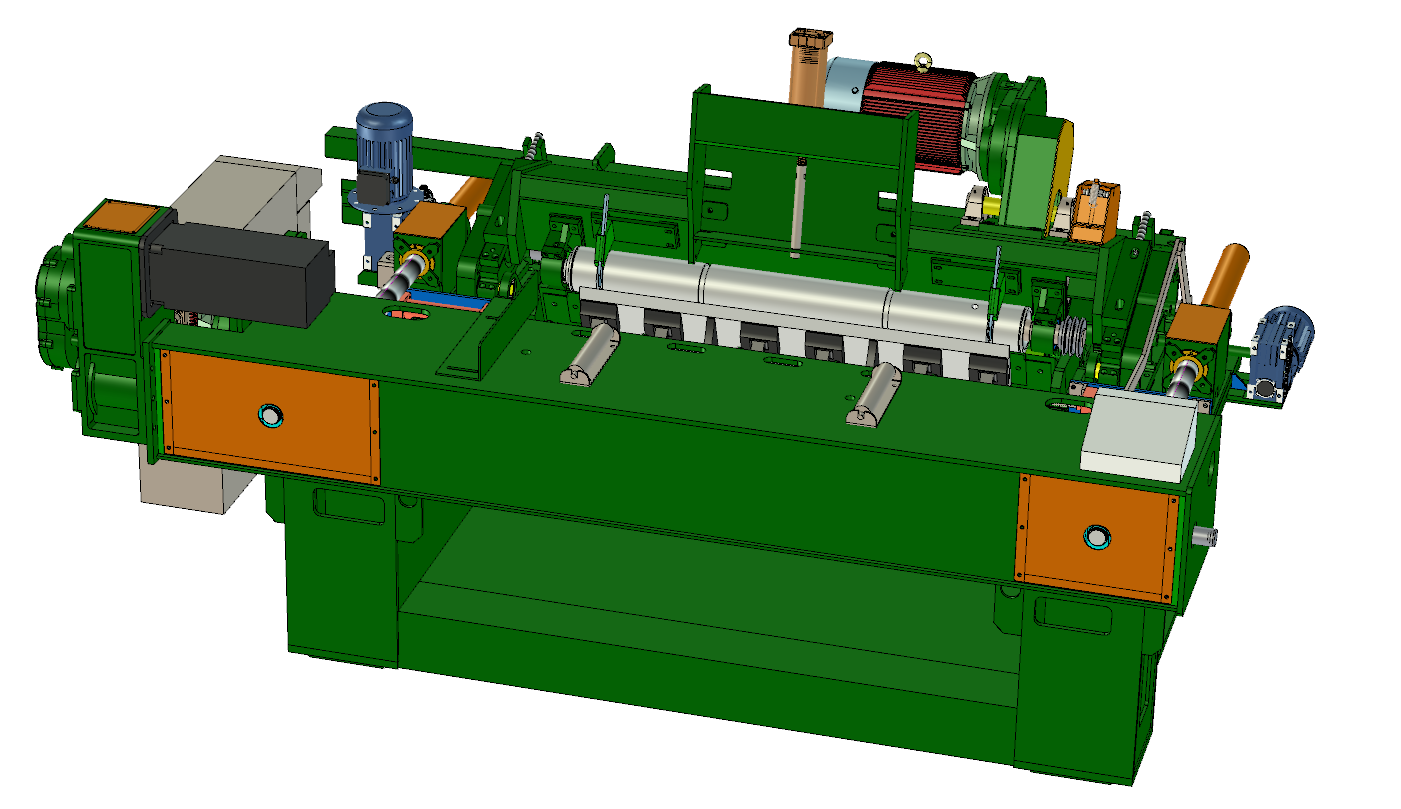

Wood Core Veneer Peeling Machine




Wood Core Veneer Peeling Machine


Rubber wood veneer peeling machine is generally used in the plywood making. Spindleless rubber wood veneer peeling machine is excellent for production of rubber wood core veneer.


Fuzhou Mutian produces many kinds of plywood making and wood veneer peeling machine, including spindleless & spindle wood veneer peeling machine, log debarker, wood veneer clipper, veneer stacker, plywood hot press machine, plywood cold press machince, wood veneer dryer and other related products.


Specification


DESCRIPTION

UNIT

BQ1813/G4S-J

Servo

Length of log

mm

900-1400

Diameter of log

mm

28-450

Length of blade

mm

1500

Thickness of veneer

mm

0.8-4.0

Width of cut veneer

mm

500-1300

Linear speed of host machine

m/min

60m/min

Diameter of driving roller

mm

102

Diameter of pressure bar roller

mm

116

Diameter of rubber roller

mm

140

Power of pressure barroller

kw

11

Power of double roller

kw

11

Power of feeding

kw

11(servo)

Power of shear

kw

3

Power of output conveyor

kw

1.5

Total power

kw

37.5

Total weight

kg

5500

Overall dimensions

mm

3900*2500*1600


Images

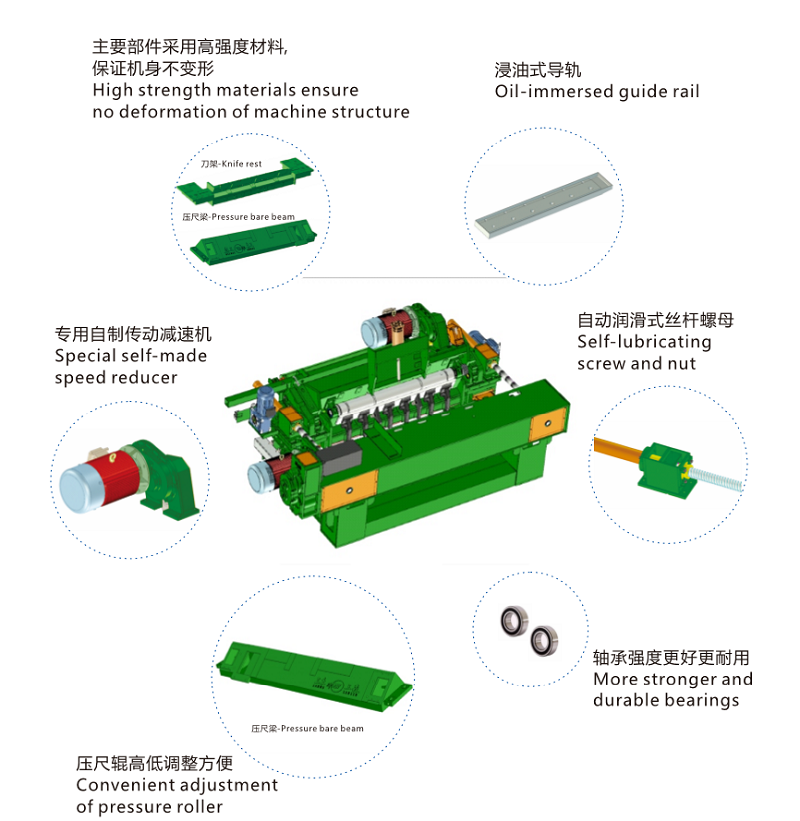

veneer peeling machine price

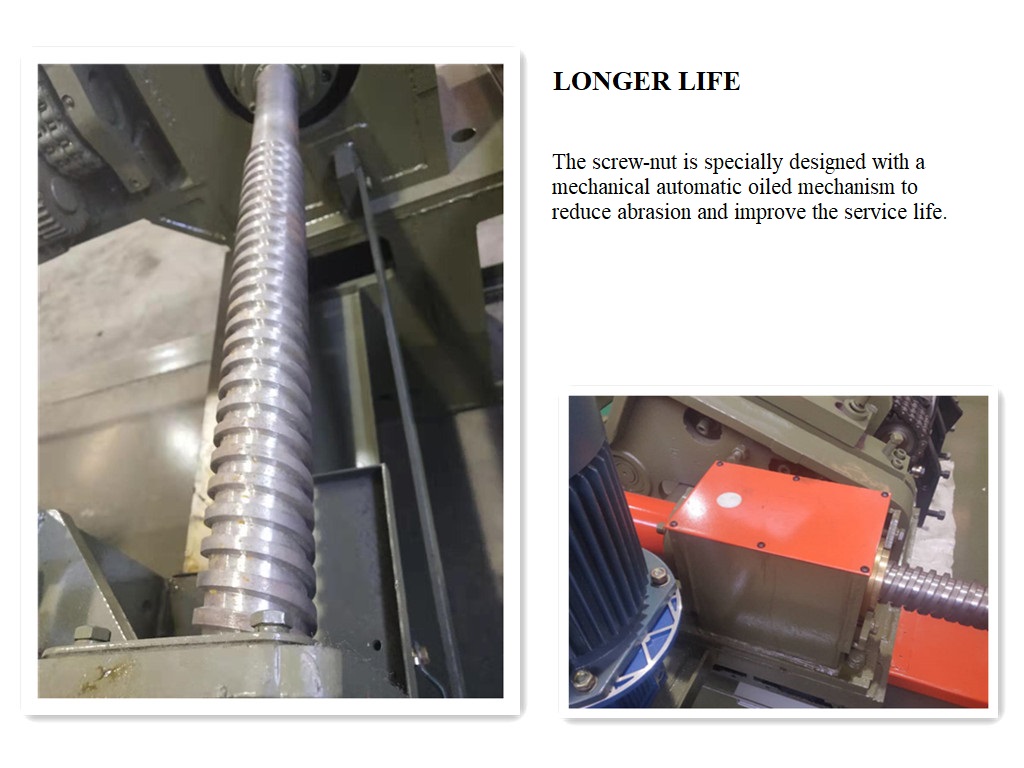

Plywood veneer peeling machine

Spindleless Veneer Peeling MachineWood Veneer Peeling Machine
