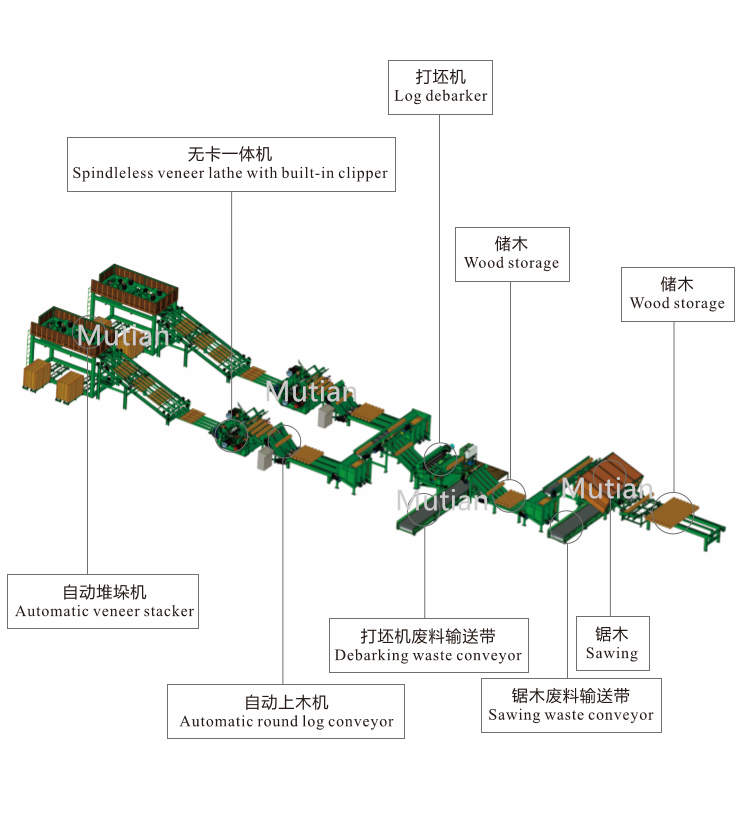

Plywood Production Line

Wood log peeling machine is a device that processes wood segments of a certain length and diameter into continuous veneer sheets, and is one of the main equipment on the plywood production line.

The wood log can be divided into large, medium and small according to the size of the wood section. The maximum length of the wood log peeling machine is more than 2m (the maximum diameter can reach 1.6m), 1~2m and less than 1m (the diameter is less than 0.5m)

Rotary Cutting Machine

Structurally, the wood log peeling machine includes rotary cutting machine with a spindle and a rotary cutting machine without spindle.

Video

Specification

DESCRIPTION	UNIT	BQ1826/G5GS-JD
Length of log	mm	2000~2600
Diameter of log	mm	30~550
Length of blade	mm	2750
Thickness of veneer	mm	0.3~3.6
Width of cut veneer	mm	620~1300
Linear speed of host machine	m/min	30-70 m/min
Diameter of driving roller	mm	115
Diameter of pressure bar roller	mm	116
Diameter of rubber roller	mm	342
Power of pressure bar roller	kw	11*2
Power of double roller	kw	11*2
Power of feeding	kw	15
Power of shear	kw	7.5
Power of output conveyor	kw	7.5
Total power	kw	74
Total weight	kg	13000
Overall dimensions	mm	6000*3050*7900
