Core Veneer Spindleless Peeling Machine

Core Veneer Spindleless Peeling Machine Manufacturer

Plywood Manufacturing Machinery

Core veneer spindleless peeling machine is main equipment of plywood manufacturing machinery.

Spindle Veneer Peeling Machine

It is used to peel eucalyptus, poplar and some other fast growing trees after peeling from spindle veneer peeling machine. Core veneer spindleless peeling machine can peel off log of max diamerter 600mm.

Veneer And Plywood

Core veneer spindleless peeling machine is the equipment that transform wood into wood products: veneer and plywood.

Plywood Wood Veneer Peeling Machine

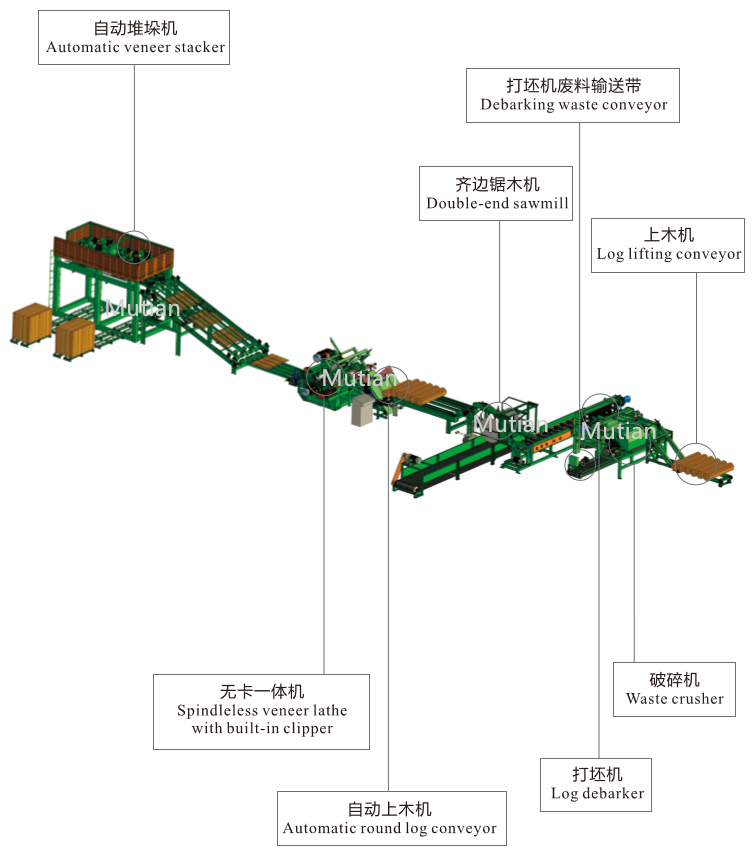

Fuzhou Mutian produces many kinds of plywood wood veneer peeling machine, including spindleless & spindle core veneer spindleless peeling machine, log debarker, wood veneer clipper, veneer stacker, plywood hot press machine, plywood cold press machine, wood veneer dryer and other related products. We provide solutions for separate machine suggestion to whole plywood plant planning.

Specification

DESCRIPTION	UNIT	BQ1813/E4-JBQ1813/E4S-J (Servo)
Length of log	mm	900-1400
Diameter of log	mm	30-400
Length of blade	mm	1500
Thickness of veneer	mm	0.5-4.0
Width of cut veneer	mm	300-3000
Linear speed of host machine	m/min	0.5-2.0(max 80m/min)2.0-4.0(max 54/65 m/min)
Diameter of driving roller	mm	105
Diameter of pressure bar roller	mm	105
Diameter of rubber roller	mm	140
Power of pressure bar roller	kw	5.5*2
Power of double roller	kw	11/15(80m/min)
Power of feeding	kw	11 Servo
Power of shear	kw	3
Power of output conveyor	kw	1.5
Total power	kw	37.5/41.5(80m/min)
Total weight	kg	6500
