Spindleless Peeling Machine for Film Faced Plywood

Plywood Production Machinery

Film Faced Plywood

It is a special type of plywood with both sides coated with a wear-resistant, waterproof film. This film is meant to protect the wood from moisture, water and extend the service period of the plywood. Spindleless peeling machine for film faced plywood peels high quality veneer from start to core with good capacity.

Our spindleless peeling machine for film faced plywood is available in different varieties. These products have been designed with special focus on working length and diameter.

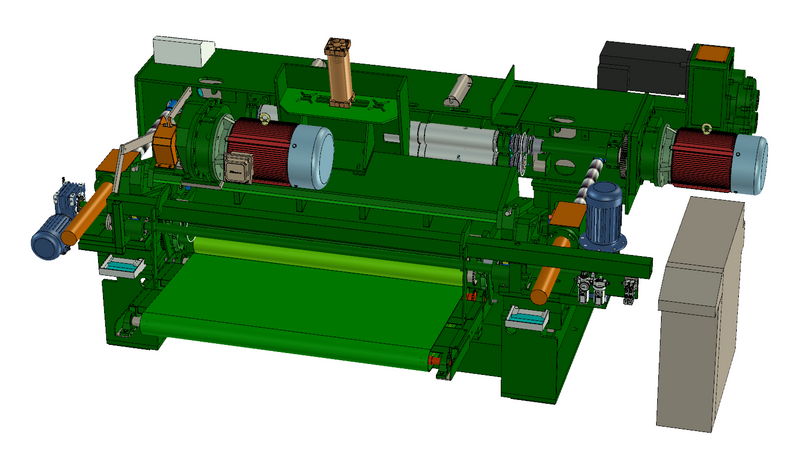

Spindleless Peeling Machine

We are engaged in manufacturing of a wide range of Spindleless peeling machine for film faced plywood & Plywood machines.Moreover, we offer our products at competitive market prices to our clients.

Video

Specification

DESCRIPTION	BQ1813/G6SI-JServo
Length of log	900-1400mm
Diameter of log	30-650mm
Length of blade	1500mm
Thickness of veneer	0.8-4.0mm
Width of cut veneer	500-1300mm
Linear speed of host machine	60m/min
Diameter of driving roller	122mm
Diameter of pressure bar roller	122mm
Diameter of rubber roller	140mm
Power of pressure barroller	15kw
Power of double roller	15kw
Power of feeding	15 (servo)kw
Power of shear	3kw
Power of output conveyor	1.5kw
Total power	49.5kw
Total weight	6500kg

Images
