LVL are panels that made from “peeler logs”. The manufacturing process of veneering and gluing enables smaller trees to create efficient utilization of wood fiber.
All veneer sheets peeled by Spindleless veneer peeling machine for LVL production line are laid up so the grain direction is the same in all veneers. With a very high strength-to weight ratio, LVL are suitable for structural wall, floor and roof applications.

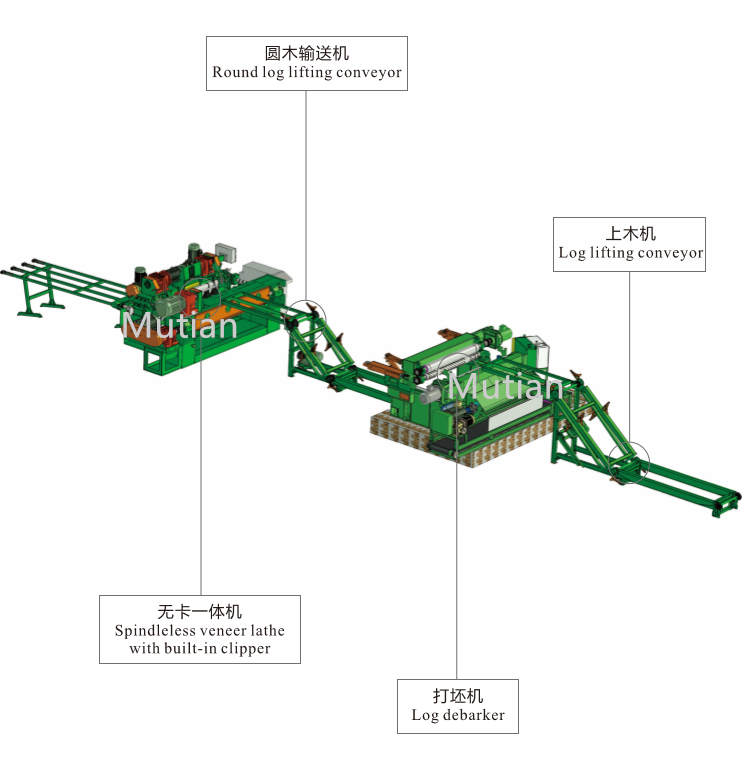

We offer a wide range of woodworking machinery for wood processed panels such as plywood, block board, and LVL to customers all over the world. These include Spindleless veneer peeling machine for LVL production line, including spindleless & spindle wood veneer peeling machine, wood debarker, wood veneer clipper, veneer stacker, plywood hot press machine, plywood cold press machine, wood veneer dryer and other related products.
DESCRIPTION | UNIT | BQ1813/G4GS-JDServo, Manual speed adjustmentby inverter |
Length of log | mm | 900-1400 |
Diameter of log | mm | 28-450 |
Length of blade | mm | 1500 |
Thickness of veneer | mm | 0.8-4.0 |
Width of cut veneer | mm | 500-1300 |
Linear speed of host machine | m/min | 40~80m/min |
Diameter of driving roller | mm | 102 |
Diameter of pressure bar roller | mm | 116 |
Diameter of rubber roller | mm | 140 |
Power of pressure barroller | kw | 11 |
Power of double roller | kw | 11 |
Power of feeding | kw | 11(servo) |
Power of shear | kw | 3 |
Power of output conveyor | kw | 1.5 |
Total power | kw | 37.5 |
Total weight | kg | 5500 |
Overall dimensions | mm | 3900*2500*1600 |
