Spindleless veneer peeling machine for LVL is generally used in the LVL plywood making. LVL is an engineered wood product that provides a high-performance alternative to solid lumber and steel in structural uses. Typical veneer thickness for LVL production is 3.2mm. Even small-diameter logs can be used to produce large LVL beams and panels. LVL are mainly used in construction and wood structures. LVL veneers are arranged in the same direction, and assemble along the longitudinal direction, so LVL have similar properties of solid lumber.
Fuzhou Mutian produces many kinds of plywood making and wood veneer peeling machine, including spindleless & spindle wood veneer peeling machine, log debarker, wood veneer clipper, veneer stacker, plywood hot press machine, plywood cold press machince, wood veneer dryer and other related products.

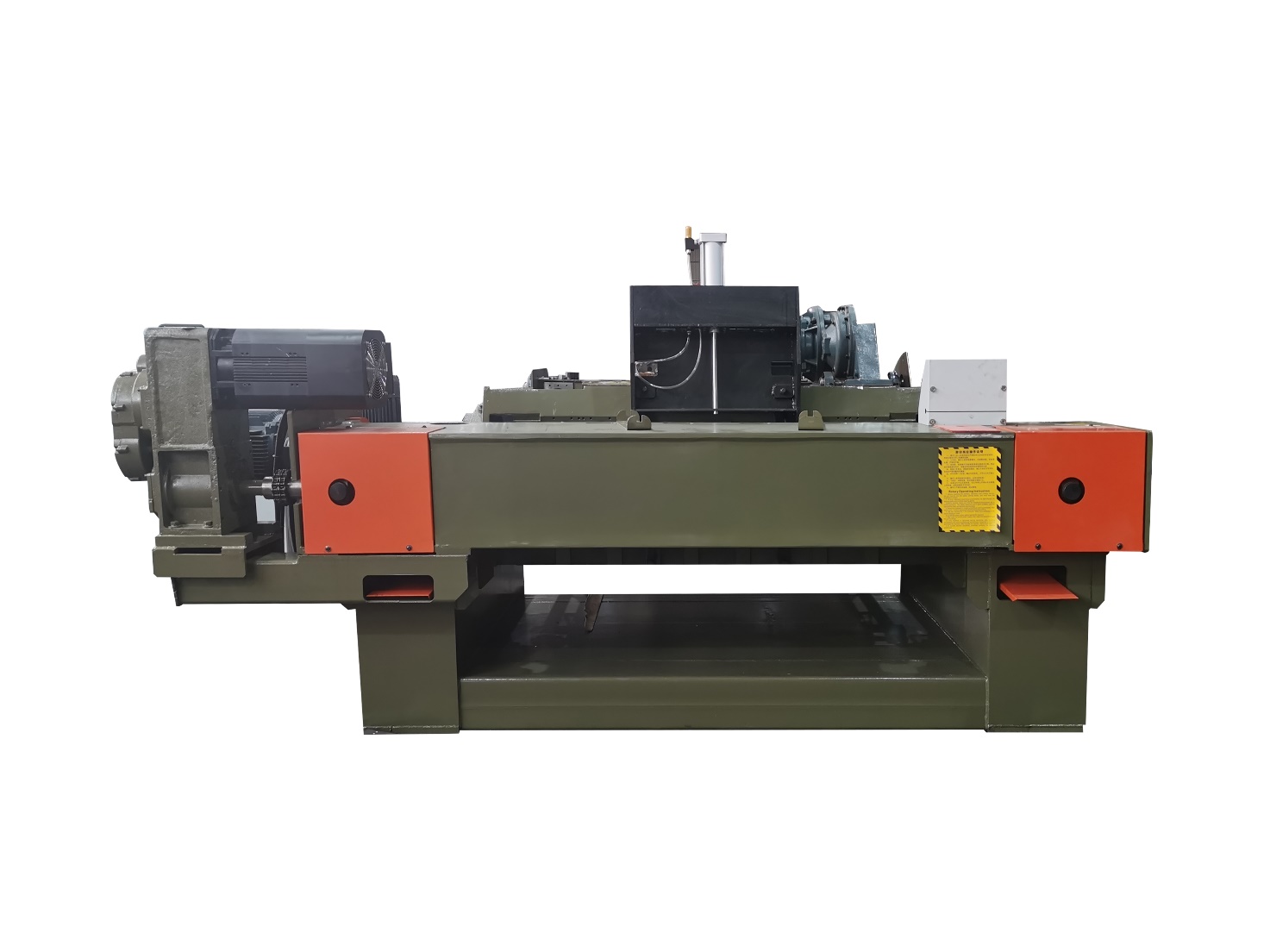

4FT Heavy Type NC. Spindleless Veneer Lathe with Built-in Clipper
DESCRIPTION | UNIT | BQ1813/G5GS-JDServo, Manualspeed adjustment |
Length of log | mm | 900-1400 |
Diameter of log | mm | 32-550 |
Length of blade | mm | 1500 |
Thickness of veneer | mm | 0.8-4.0 |
Width of cut veneer | mm | 500-1300 |
Linear speed of host machine | m/min | 40~80 m/min |
Diameter of driving roller | mm | 122 |
Diameter of pressure bar roller | mm | 143 |
Diameter of rubber roller | mm | 140 |
Power of pressure bar roller | kw | 11 |
Power of double roller | kw | 11 |
Power of feeding | kw | 11 |
Power of shear | kw | 3 |
Power of output conveyor | kw | 1.5 |
Total power | kw | 37.5 |
Total weight | kg | 5500 |
Overall dimensions | mm | 3900*2500*1600 |
