Roller Veneer Dryer Machine

Suitable Roller veneer dryer machine has many positive impacts on veneer quality and plywood production. The Roller veneer dryer machine is capable to handle veneer sheets peeled from hardwood and softwood. It can be installed on a flat floor.
Availability:
Quantity:
inquiry Add to Basket

Roller Veneer Dryer Machine Manufacturer


Roller Veneer Dryer Machine Manufacturer


Plywood Production


Suitable Roller veneer dryer machine has many positive impacts on veneer quality and plywood production. The Roller veneer dryer machine is capable to handle veneer sheets peeled from hardwood and softwood. It can be installed on a flat floor.


This Roller veneer dryer machine can less 80% operators for drying phases compared to natural drying processes.


Fuzhou Mutian offers several different Roller veneer dryer machine which is suitable for different plywood production process. By choosing suitable Roller veneer dryer machine, you will get high-quality, even flatness veneer sheet that are ready to be processed as plywood, LVL beams and other artificial panel.

Specification


DESCRIPTION

UNIT

Roller Veneer Dryer

Density

Kg/m3

590

Veneer Thickness

mm

1.5

Initial moisture content

/

75%

Final moisture content

/

8-10%

Heating media

/

Saturated steam or heat-transfer oil(working pressure 0.8Mpa)

Working temperature

/

160℃

Load ratio

/

85%

Working width

mm

2800

Working decks

/

3

Length of heating section

mm

13*2000=26000

Length of cooling section

mm

2*2000=4000

Roller Transmission speed

m/min

1.5-15

Drying capacity

m3/h

4.5

Effective hear consumption

kcal/h

220

Motor installed capacity

kw

183.5

Motor for transmission

kw

7.5+11=18.5

Motor for ventilation

kw

13*11=143

Motor for ventilation

kw

4*5.5=22

Compressed air pressure

Mpa

0.4-0.5

Compressed air consumption under free state

m3/min

1.0

Total size （L*W*H）Excluded humiditu-dischargingand exhaust device

mm

46850*5400*4300


Images

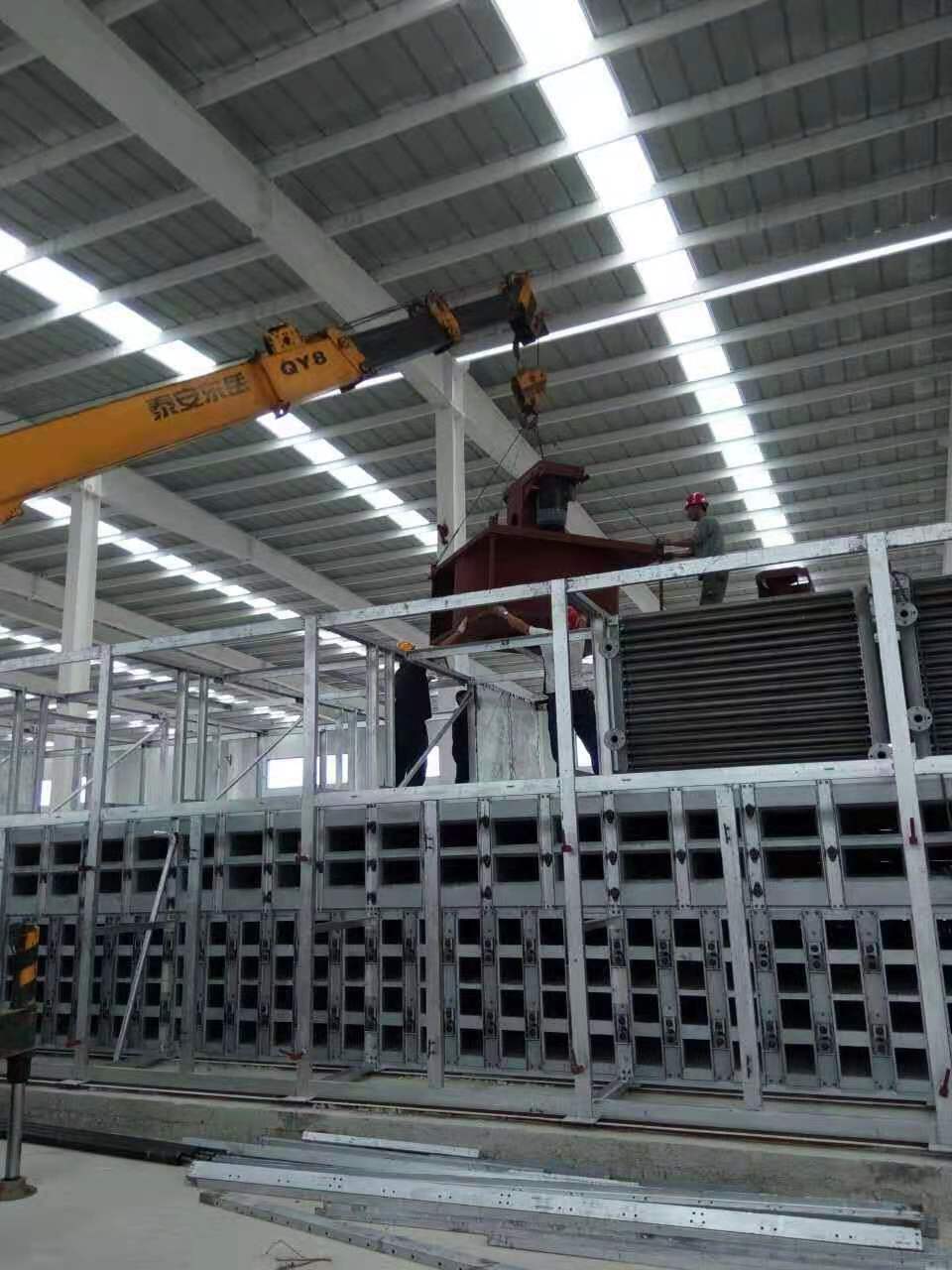

roller veneer dryer machine china

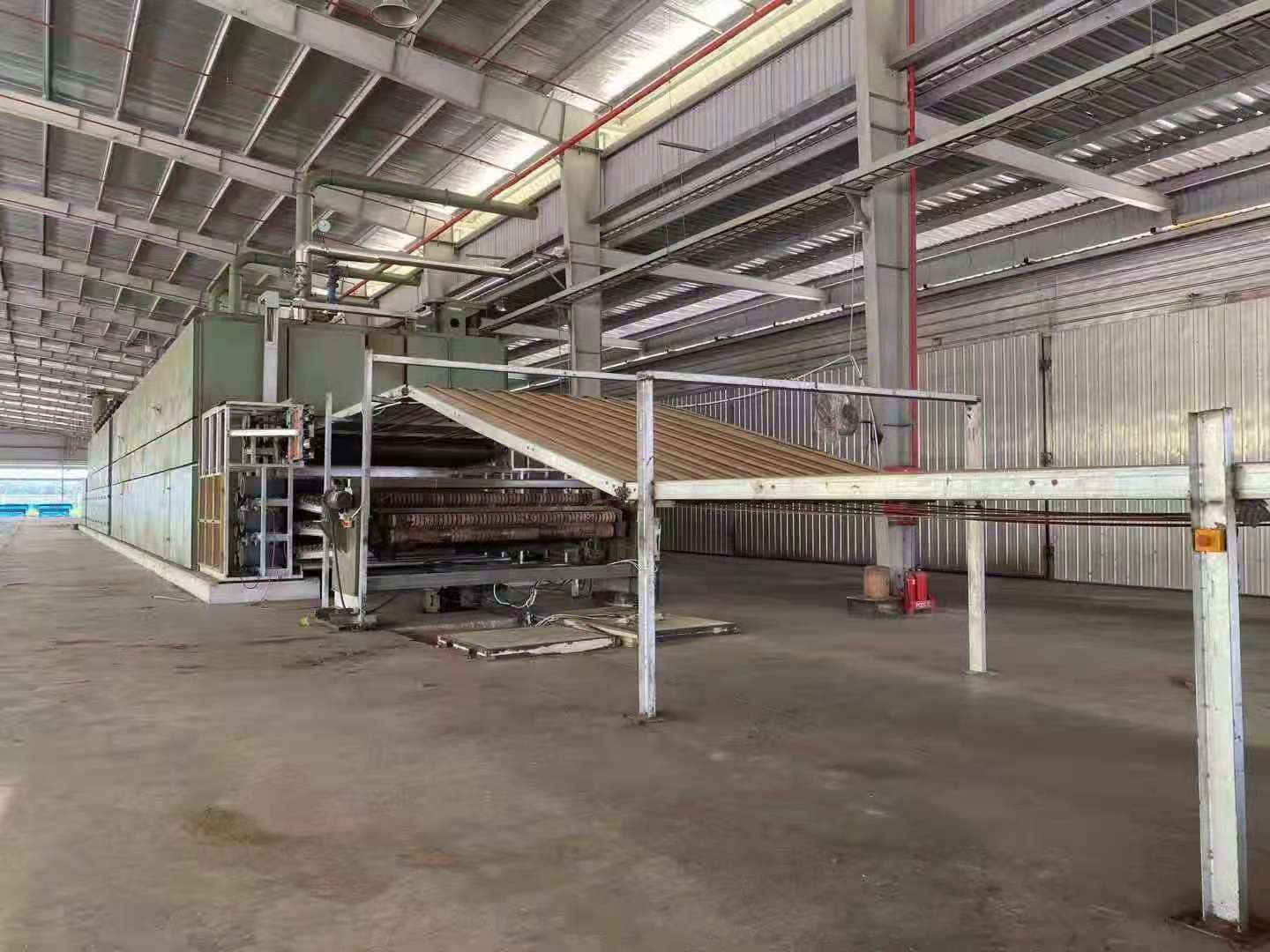

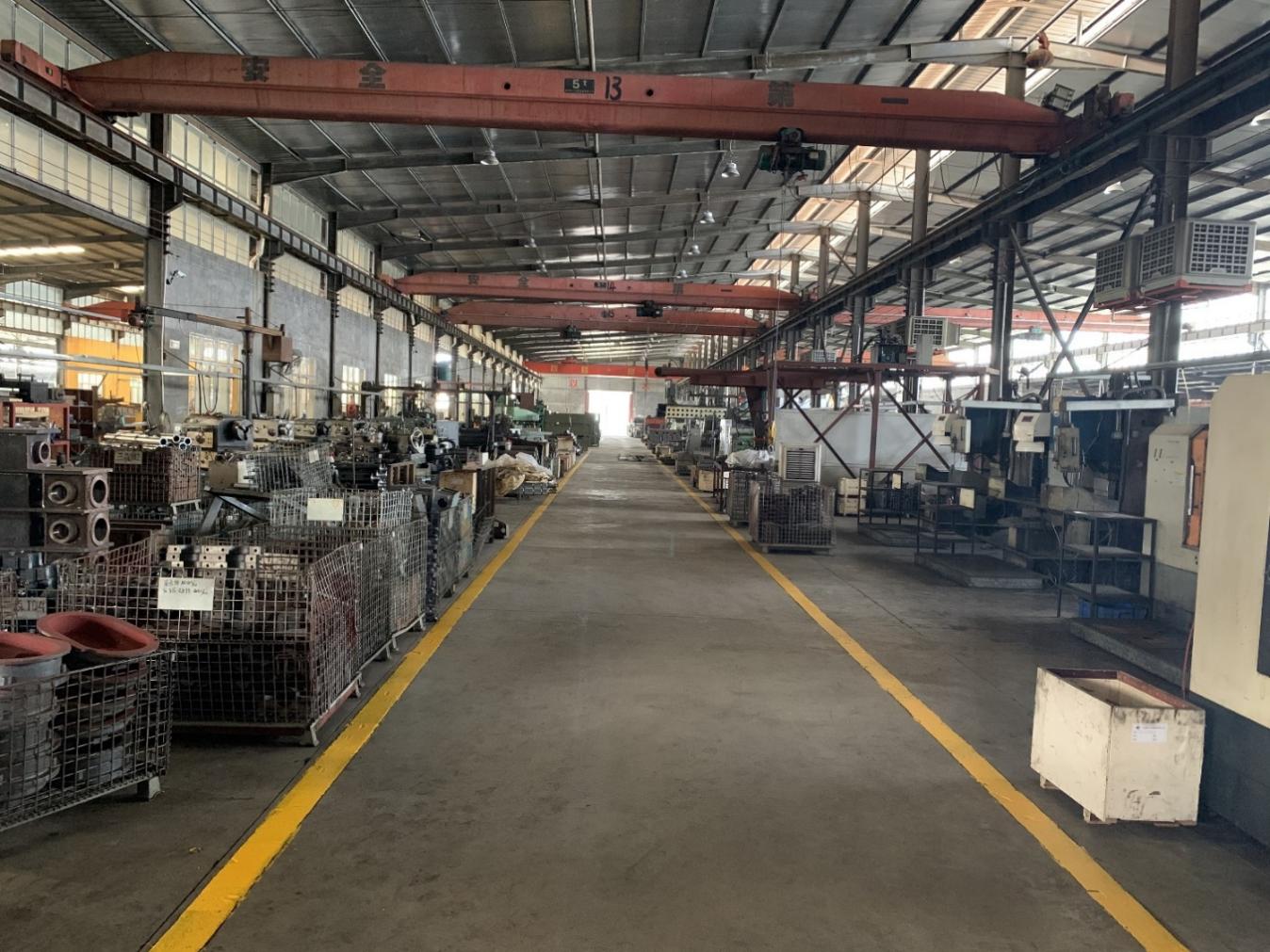

Veneer Dryer Machine

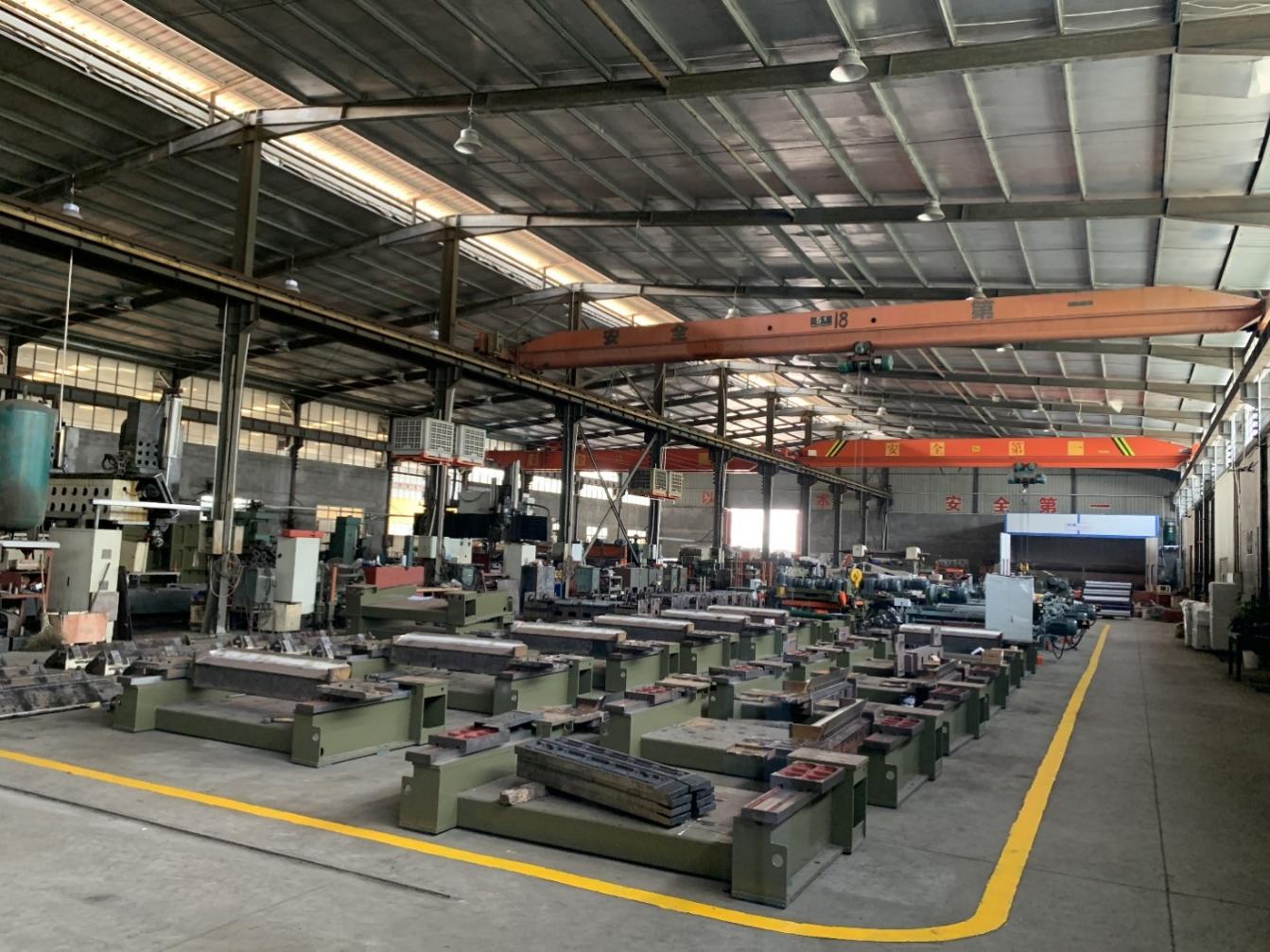

Roller Veneer Drying Machine
