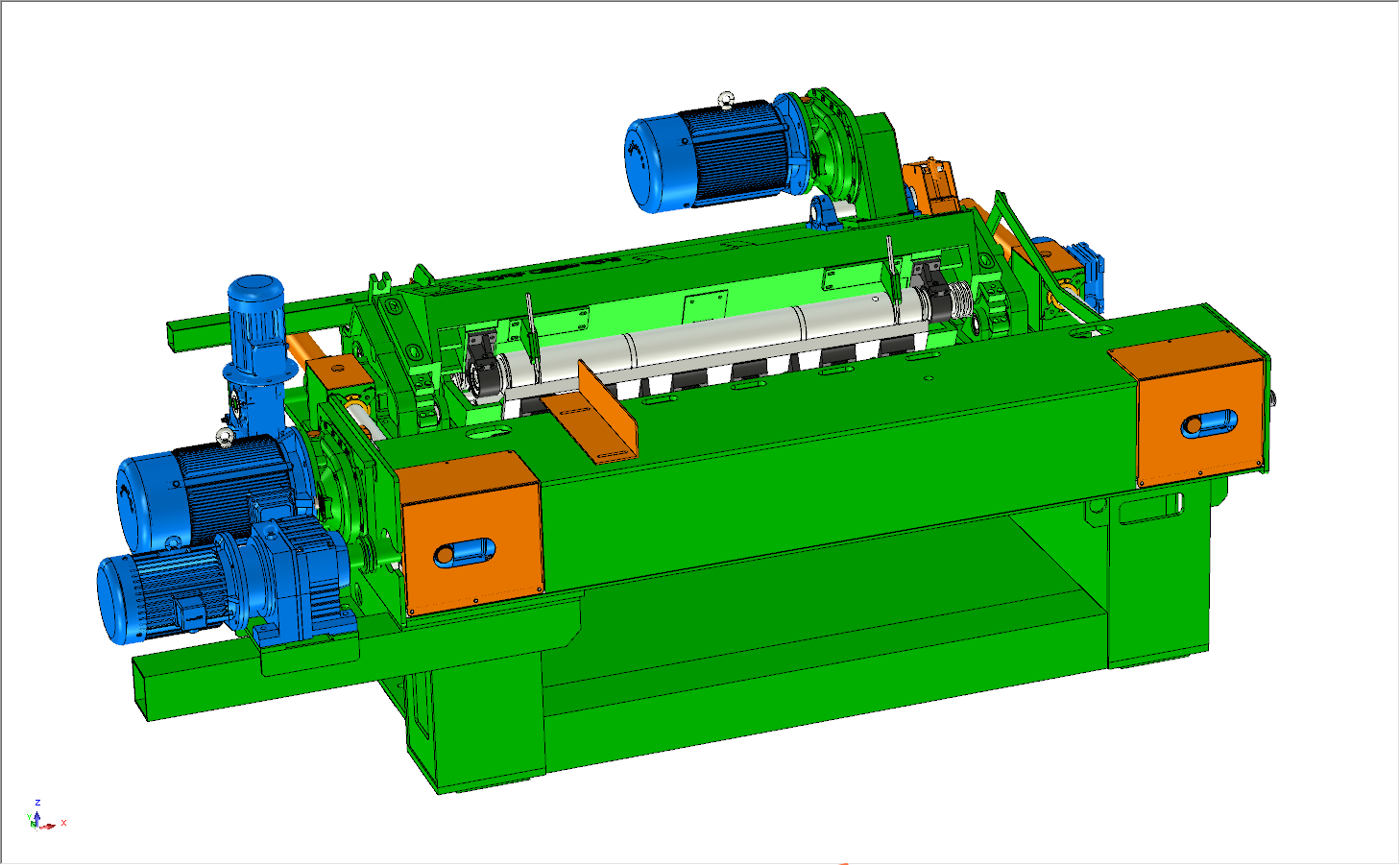

Poplar Wood Veneer Peeling Machine

Wood Peeling Machine For Plywood

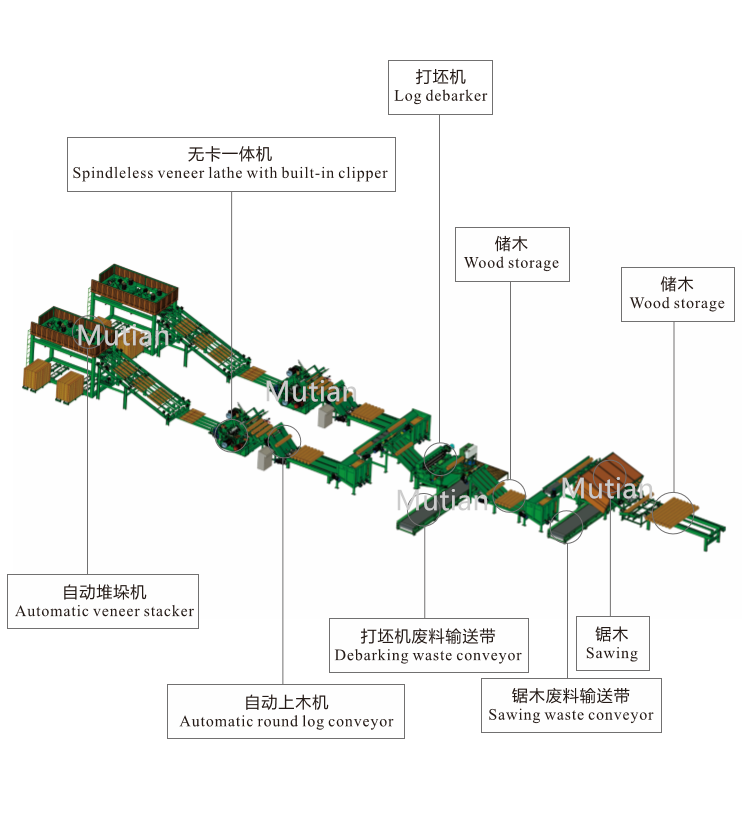

Plywood Veneer Production Line

Poplar wood veneer peeling machine is one of the important equipment in the plywood veneer production line.The quality of plywood depends to a large extent on the quality of the veneer. Therefore, the requirements for poplar veneer peeling machines are very high in veneer production. Poplar wood veneer peeling machine can peel log with max diameter 600mm.

High Production Efficiency

The precision of the poplar veneer peeling machine is getting higher and higher. Rotary peeling method is the most widely used in the production of modern plywood. Rotary peeling method has high production efficiency and high wood utilization rate.

Fuzhou Mutian produces many kinds of plywood wood veneer peeling machine, including spindleless & spindle wood veneer peeling machine, log debarker, wood veneer clipper, veneer stacker, plywood hot press machine, plywood cold press machince, wood veneer dryer and other related products.

Specification

DESCRIPTION	UNIT	BQ1813/G4GSI-J Servo, Auto speed adjustment by inverter
Length of log	mm	900-1400
Diameter of log	mm	28-450
Length of blade	mm	1500
Thickness of veneer	mm	0.8-4.0
Width of cut veneer	mm	500-3000
Linear speed of host machine	m/min	40~80m/min
Diameter of driving roller	mm	102
Diameter of pressure bar roller	mm	116
Diameter of rubber roller	mm	140
Power of pressure barroller	kw	11
Power of double roller	kw	11
Power of feeding	kw	11(servo)
Power of shear	kw	3 Synchronous servo
Power of output conveyor	kw	1.5
Total power	kw	37.5
Total weight	kg	5500
Overall dimensions	mm	3900*2500*1600
