Semi-automatic Plywood Press Machine with Loading

Before the hot pressing of the plywood slab, the veneer is basically bonded into a whole through short-term pressure in the Semi-automatic plywood press machine with loading. Therefore, it can be loaded and unloaded without a backing plate, which saves heat consumption and improves the production capacity of the press.
Availability:
Quantity:

Semi-automatic plywood press machine with loading


semi auto loader of plywood hot press


Before the hot pressing of the plywood slab, the veneer is basically bonded into a whole through short-term pressure in the Semi-automatic plywood press machine with loading. Therefore, it can be loaded and unloaded without a backing plate, which saves heat consumption and improves the production capacity of the press.


The slabs obtained by forming blanks or paving from different components of wood-based panels have loose structure, large thickness, and no initial bonding strength. In order to ensure the paving structure of the slabs and a certain degree of compactness, prevent the slabs from being transported. In the middle collapse, the opening between the press plates is reduced, and the productivity is improved, so the slab Semi-automatic plywood press machine with loading is set before the hot pressing.


Product Specification


DESCRIPTION

UNIT

SPECIFICATION

Norminal pressure

T

400-500

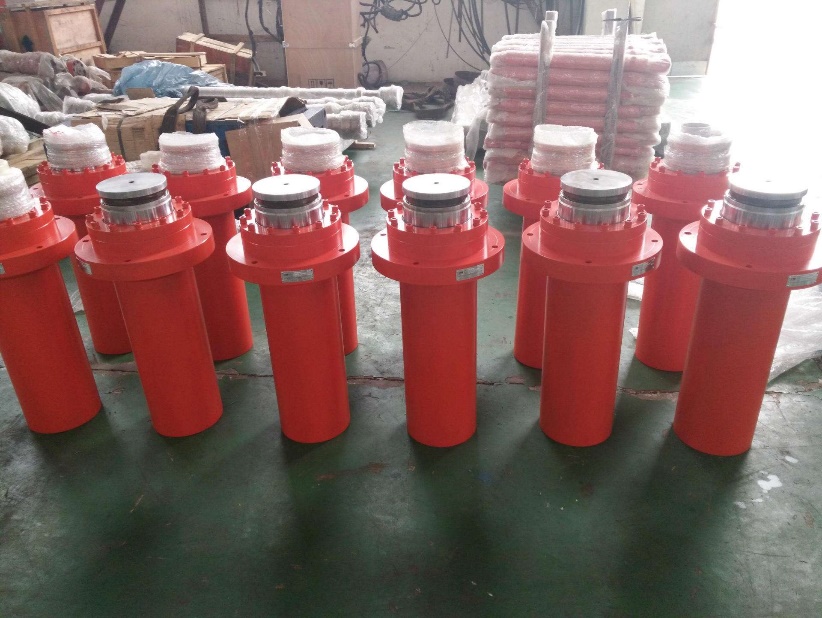

Cylinder diameter

mm

320/360*2

Plate size

/

2700*1370

Opening distance

mm

1500-1800

Power

kw

11+7.5

Overall dimensions

mm

3550*1370*4100
