Veneer Glue Spreader for Plywood Machinery

Roller gluing is a contact gluing method. Commonly used are two-roller and four-roller veneer glue spreader for plywood machinery. The glue on the upper roller of the double-roller gluing machine is transferred up by the lower roller. When glue is applied, the veneer passes between the two rollers, and the glue on the roller is applied to the veneer by contact. The amount of glue applied is mainly adjust the number of groove patterns on the rollers between the rollers.
Availability:
Quantity:

High Precision Glue Spreader Machine


High Precision Glue Spreader Machine


Two-roller And Four-roller


Roller gluing is a contact gluing method. Commonly used are two-roller and four-roller veneer glue spreader for plywood machinery. The glue on the upper roller of the double-roller gluing machine is transferred up by the lower roller.


When glue is applied, the veneer passes between the two rollers, and the glue on the roller is applied to the veneer by contact. The amount of glue applied is mainly adjust the number of groove patterns on the rollers between the rollers.


Fuzhou Mutian produces many kinds of plywood making and wood veneer peeling machine, including spindleless & spindle wood veneer peeling machine, log debarker, wood veneer clipper, veneer stacker, plywood hot press machine, plywood cold press machince, wood veneer dryer and other related products.


DESCRIPTION

UNIT

SPECIFICATION

Working Width

(mm)

1400

Spreading roller

mmФ×mm

305×1400*2

Dosing roller

mmФ×mm

270×1400*2

Total power

kw

4KW

Total weight

kg

1950


Images

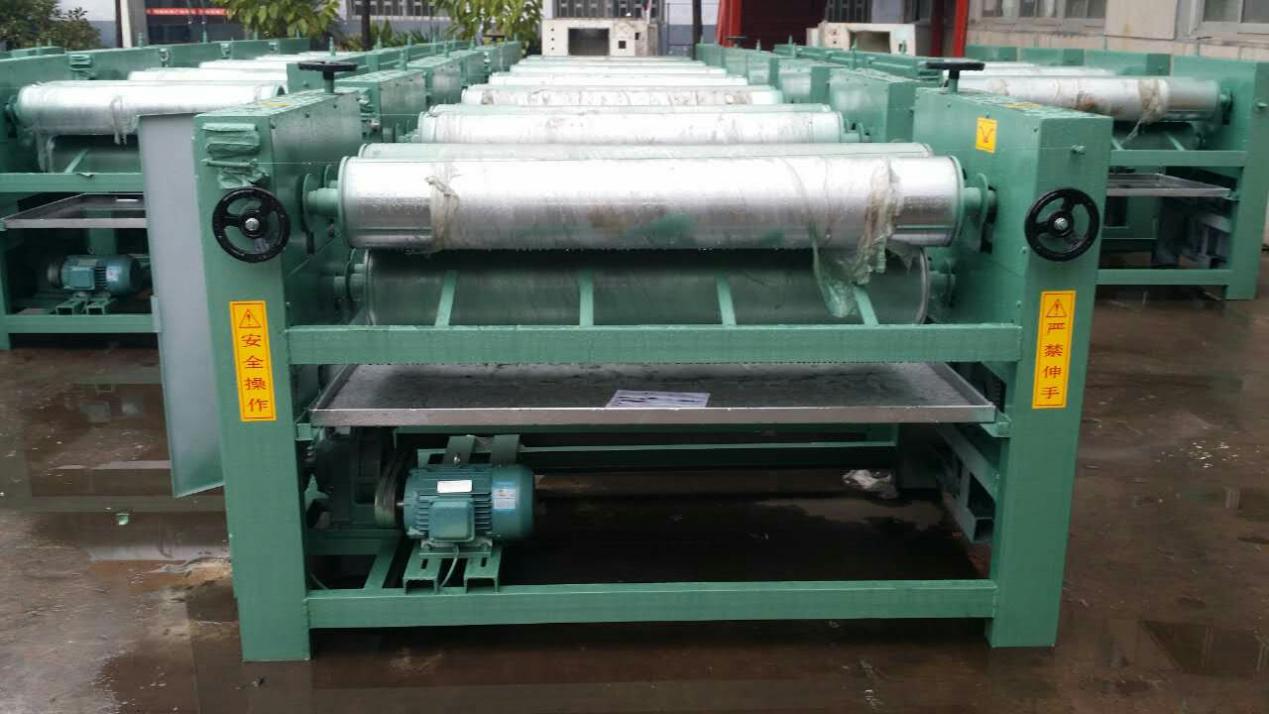

veneer glue applicator manufacturer

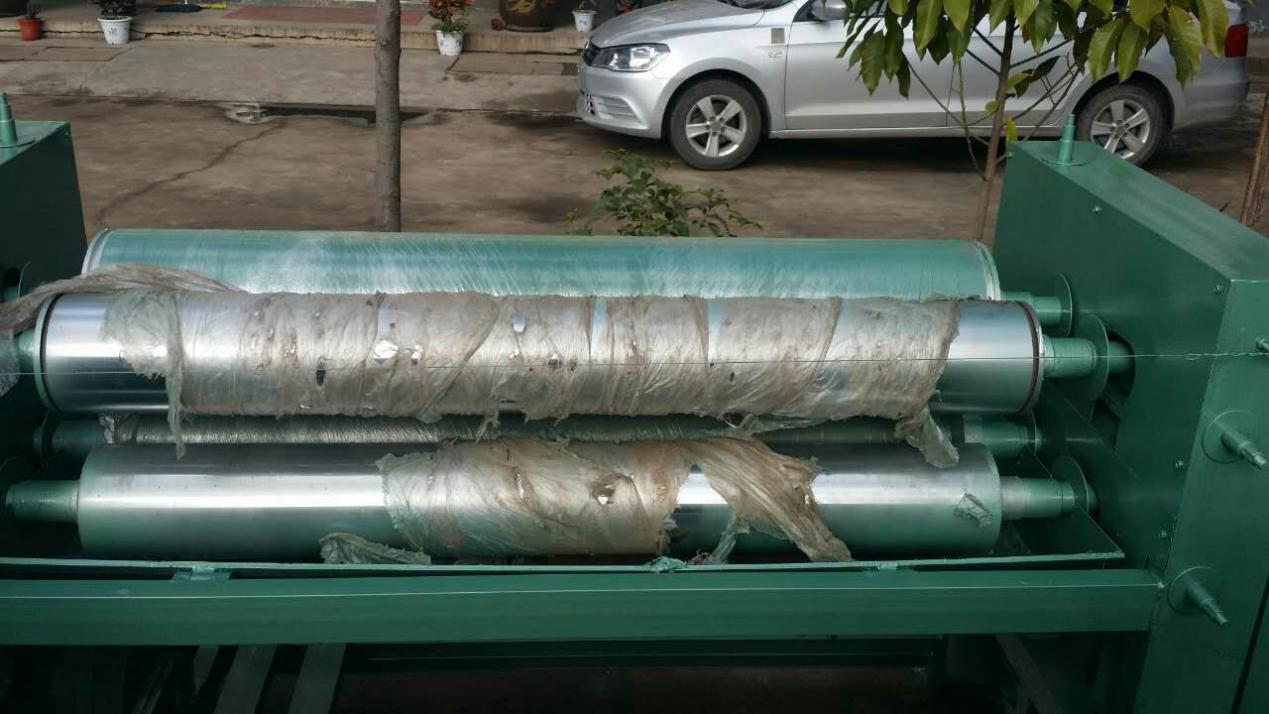

Veneer Glue Spreader for Plywood Machinery

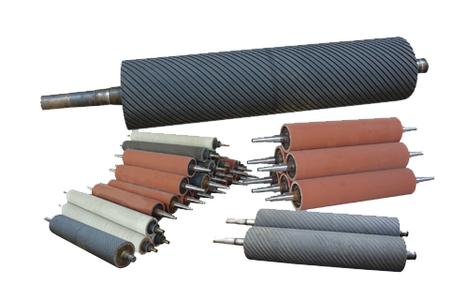

Glue Spreader For Plywood
