LVL is a very stable and straight wood product that made from wood veneer sheets. All veneer sheets peeled by wood veneer peeling machine LVL plywood are laid up so the grain direction is the same in all veneers. LVL process is based on a combination of lay-up and cycle-type hot pressing. With a light weight and can be sawn and drilled, LVL are suitable for structural wall, floor and roof applications.

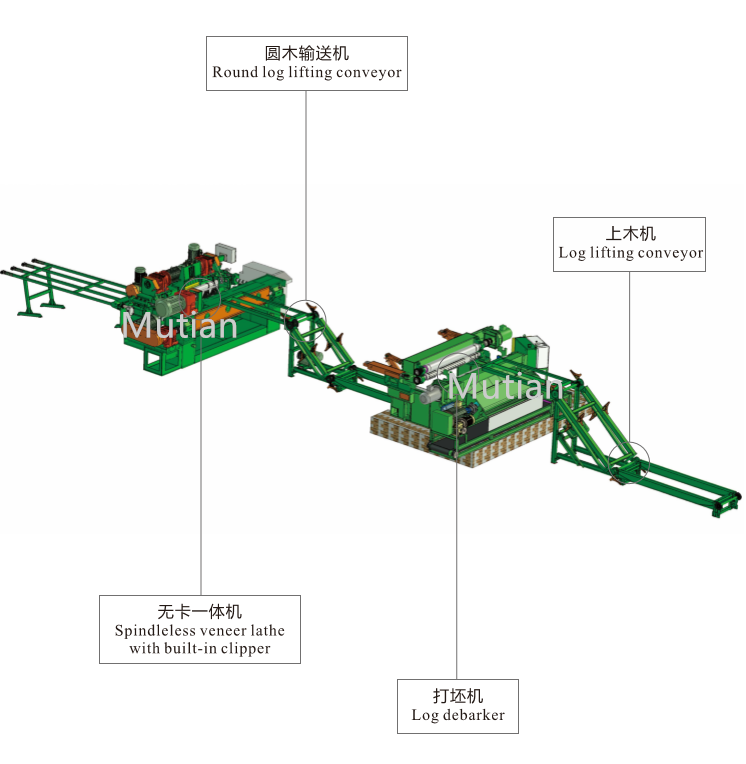

We offer a wide range of woodworking machinery for wood processed panels such as plywood, block board, and LVL to customers all over the world. These include wood veneer peeling machine for LVL production line, including spindleless & spindle wood veneer peeling machine, wood debarker, wood veneer clipper, veneer stacker, plywood hot press machine, plywood cold press machine, wood veneer dryer and other related products.
DESCRIPTION | UNIT | BQ1813/G4GS-JDServo, Manual speed adjustment by inverter
|
Length of log | mm | 900-1400 |
Diameter of log | mm | 28-450 |
Length of blade | mm | 1500 |
Thickness of veneer | mm | 0.8-4.0 |
Width of cut veneer | mm | 500-1300 |
Linear speed of host machine | m/min | 40~80m/min |
Diameter of driving roller | mm | 102 |
Diameter of pressure bar roller | mm | 116 |
Diameter of rubber roller | mm | 140 |
Power of pressure barroller | kw | 11 |
Power of double roller | kw | 11 |
Power of feeding | kw | 11(servo) |
Power of shear | kw | 3 |
Power of output conveyor | kw | 1.5 |
Total power | kw | 37.5 |
Total weight | kg | 5500 |
Overall dimensions | mm | 3900*2500*1600 |
