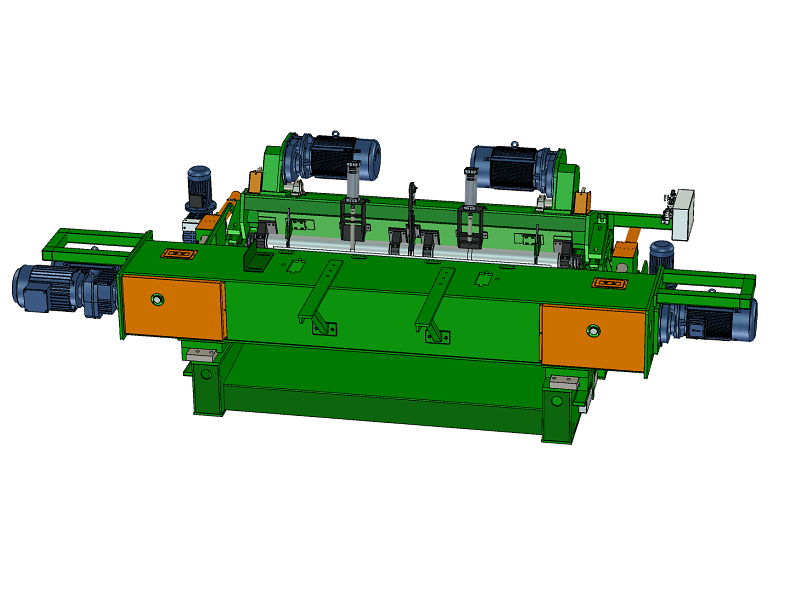

Plywood core veneer peeling machine is used to peel core veneer for plywood production. As an important machine of plywood making machine, Plywood core veneer peeling machine will be place in front of veneer clipper.
Plywood is panel manufactured from several thin layers of wood veneer that are glued together. Several layers of thin wood veneer make plywood as one of the most resistant,durable and stable material in the construction material.
Fuzhou Mutian produces many kinds of plywood wood veneer peeling machine, including spindle & Plywood core veneer peeling machine, log debarker, wood veneer clipper, veneer stacker, plywood hot press machine, plywood cold press machince, wood veneer dryer and other related products.
DESCRIPTION | UNIT | BQ1820/G5GS-JD Servo, Manual speed adjustment by inverter |
Length of log | mm | 1400~2000 |
Diameter of log | mm | 28-550 |
Length of blade | mm | 2150 |
Thickness of veneer | mm | 0.3~3.6 |
Width of cut veneer | mm | 620~1300 |
Linear speed of host machine | m/min | 30-70 m/min |
Diameter of driving roller | mm | 102 |
Diameter of pressure bar roller | mm | 116 |
Diameter of rubber roller | mm | 280 |
Power of pressure bar roller | kw | 11*2 |
Power of double roller | kw | 11*2 |
Power of feeding | kw | 11 |
Power of shear | kw | 4 |
Power of output conveyor | kw | 4 |
Total power | kw | 63 |
Total weight | kg | 10000 |
Overall dimensions | mm | 5500*2800*1600 |
