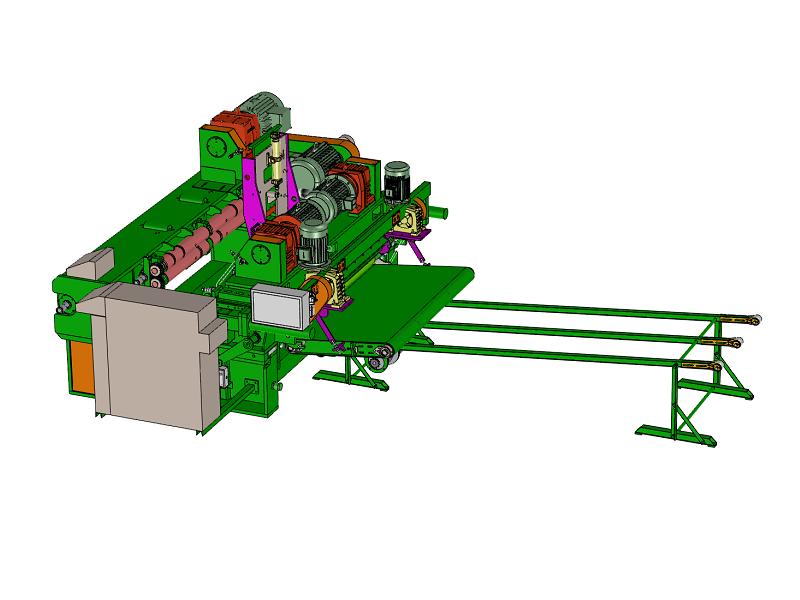

Automatic Plywood Veneer Peeling Machine

Automatic plywood veneer peeling machine with clipping is main machine in plywood making.It is used to peel eucalyptus, poplar and some other fast growing trees after peeling from spindle veneer peeling machine.Automatic plywood veneer peeling machine can peel off log of max diamerter 600mm.

Availability:
Quantity:
inquiry Add to Basket

Automatic plywood veneer peeling machine



Automatic plywood veneer peeling machine with clipping is main machine in plywood making.It is used to peel eucalyptus, poplar and some other fast growing trees after peeling from spindle veneer peeling machine.Automatic plywood veneer peeling machine can peel off log of max diamerter 600mm.


Automatic plywood veneer peeling machine is the equipment that transform wood into wood products: veneer and plywood.


Fuzhou Mutian produces many kinds of plywood wood veneer peeling machine, including spindleless & spindle Automatic plywood veneer peeling machine, log debarker, wood veneer clipper, veneer stacker, plywood hot press machine, plywood cold press machince, wood veneer dryer and other related products. We provide solutions for separate machine suggestion to whole plywood plant planning.


Product Specification


DESCRIPTION

UNIT

BQ1813/E4-J

BQ1813/E4S-J

(Servo)

Length of log

mm

900-1400

Diameter of log

mm

Φ30-Φ400

Length of blade

mm

1500

Thickness of veneer

mm

0.5-4.0

Width of cut veneer

mm

300-3000

Linear speed of host machine

m/min

0.5-2.0(max 80m/min)

2.0-4.0(max 54/65 m/min)

Diameter of driving roller

mm

105

Diameter of pressure bar roller

mm

105

Diameter of rubber roller

mm

140

Power of pressure bar roller

kw

5.5*2

Power of double roller

kw

11/15(80m/min)

Power of feeding

kw

11

Servo

Power of shear

kw

3

Power of output conveyor

kw

1.5

Total power

kw

37.5/41.5(80m/min)

Total weight

kg

6500
