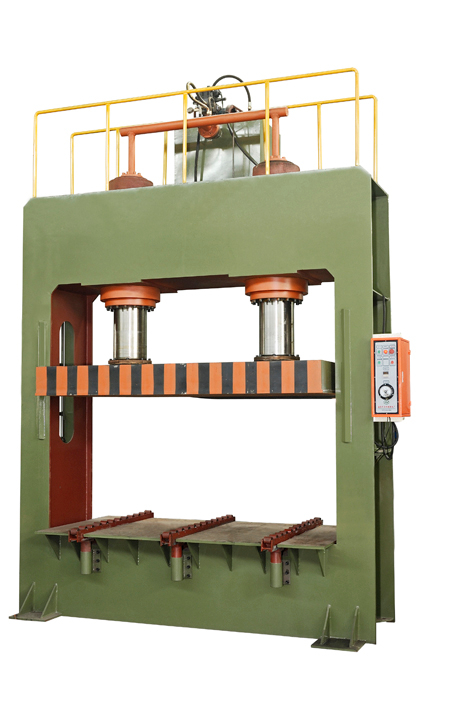

Hydraulic Plywood Cold Press Machine for Wood

Cold press machine is one of the most popularly used plywood machines. Made of fabricated steel, the cold press machine can be installed anywhere on the floor of the factory without occupying too much space.
Availability:
Quantity:

Hydraulic plywood cold press machine for wood

Plywood Cold Press Machine


Cold press machine is one of the most popularly used plywood machines. Made of fabricated steel, the cold press machine can be installed anywhere on the floor of the factory without occupying too much space.


In the production of plywood, before the veneer assembly blank enters the hot press for hot pressing and gluing, it needs to be cold pressed in the pre-press for a period of time, so that the veneers of each layer are basically glued together to facilitate the assembly of the hot press. This process is called For pre-compression. The slab pre-compression can prevent the veneer from misalignment during the moving process and cause defects such as core stacking or core separation; second, it can increase the fluidity of the glue to facilitate the formation of a good continuous glue film on the surface of the veneer, thereby avoid lack of glue, dry glue, etc., so automatic plywood cold press machine is beneficial to increase the output of plywood, and at the same time, it can shorten the hot pressing time, which is beneficial to increase the number of layers of the hot press, increase the output of the hot press, and reduce the production cost


Product Specification


DESCRIPTION

UNIT

SPECIFICATION

Platen size

mm

1400*2700

Total pressure

T

500T

Opening

mm

1800

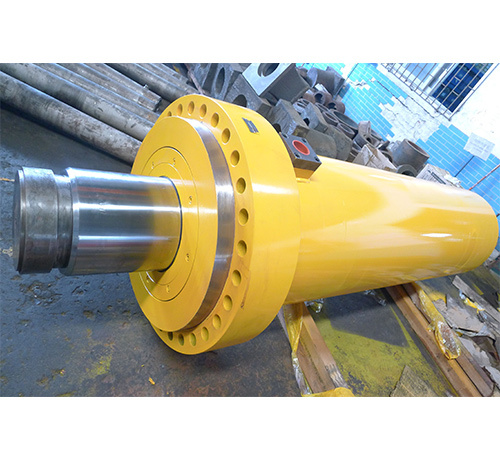

Piston cylinder diameter

mm

360

Lifting cylinder diameter

mm

80

Cylinder work stroke

mm

800

Cylinder number

/

2 + 2

Control method

/

Automatic manifold block
