Automatic plywood hot press machine for wood is one of the most popularly used plywood machines. Made of fabricated steel, the hot press plywood press machine can be installed anywhere on the floor of the factory without occupying too much space.
The production output of the Hydraulic plywood hot press machine with semi-auto lading and unlading mainly depends on the number of layers and the size of the hot press. Different products have different hydraulic systems for the hot press. For example, in the production of plywood, the nominal pressure of the hot press can be lower. The heating medium is heated by hot water, but oil heating is increasingly used recently. Steam heating is difficult to maintain the constant high temperature required for the entire platen surface. Using oil as the heating medium, the hot press can be heated to above 200°C without any difficulty, thereby reducing the pressure of pressurization.
DESCRIPTION | UNIT | SPECIFICATION |
Work layer | layer | 8-20 |
Pressboard size | mm | 1370*2700*42/52 |
Size of products (ft*ft) | / | 4*8 |

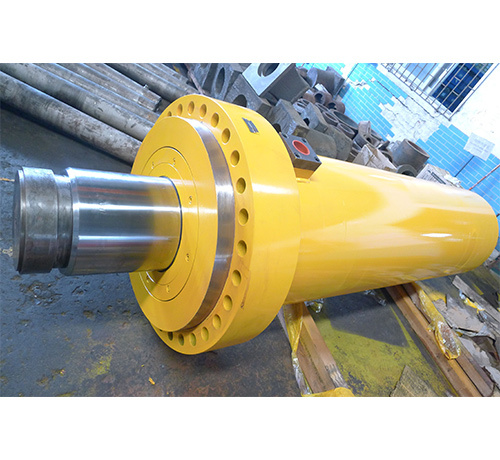

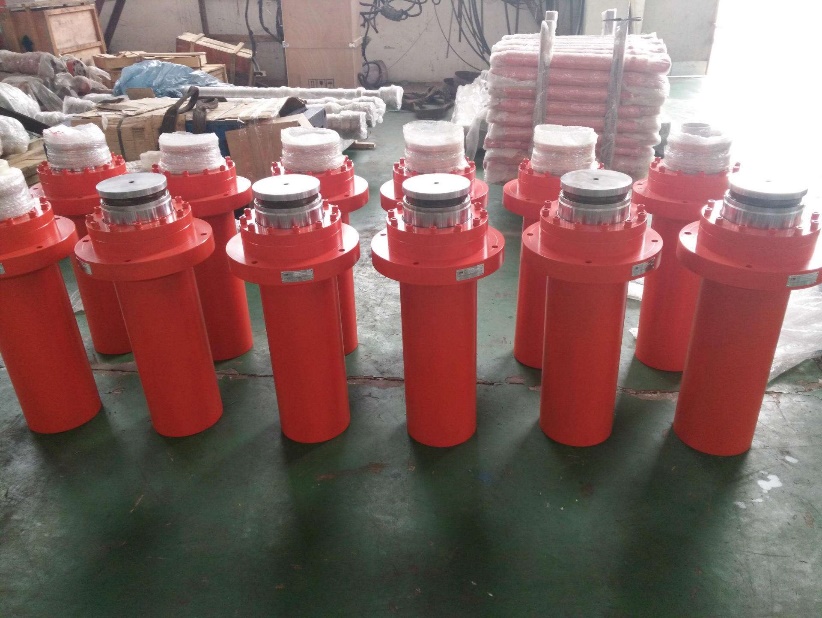

Cylinder | / | 320*2 or280*4 |
Heating way | / | Steam or thermic oil |
Power | kw | 15kw+7.5kw |
