In 2000, MuTian's started producing laminate hot press machines, and today it is regarded as a leader in the field.
The laminate hot press machine is utilized to apply melamine papers or phenolic film directly onto MDF, Particle Board, Chipboard, or Plywood. The resulting laminated board comes in a variety of designs like mirror, matt, suede, snow, wood, stone, etc. and is commonly used in furniture and flooring industries.
Contact Miranda today for an instant quote.
Application of Laminate Hot Press Machine
Flooring
Door Panels
Furniture Panels
For short cycle lamination technology, a hot press laminate machine is utilized. Particleboard and fiberboard are covered with ornamental impregnated paper using a hot press. The products are mainly divided into three categories: flooring, door panels, and furniture panels.
The key distinction between a furniture board and a floor lies in the variety of impregnated paper used and the floor's requirement for greater abrasion resistance. The reinforced floor, also known as the floor, is made by impregnating high-density fiberboard with special-purpose paper layers (decorative and abrasion-resistant) on the surface and hot-pressing it backed with balance paper.
Applying veneers to various wood panel types and melamine-impregnated paper is its primary use. Door panels, furniture panels, and timber flooring can all be pressed using this.
Suitable for producing various sizes:
4’x8 ‘
4’x9’
5’x8 ‘
6’x8’
6’x9 ‘
7’x9’
6’x12 ‘
4’x16’
Melamine paper is applied to wood-based panels such as MDF, particleboard, etc. to make melamine laminated boards. The stainless steel press plate in the melamine press machine controls the surface roughness. There are numerous tactile surface options available, including wood grain, embossing, and some 3D patterns that mostly mimic natural textures.
Parameters of Laminate Hot Press Machine
DESCRIPTION | UNIT | SPECIFICATION |
Work layer | layer | 8-20 |
Pressboard size | mm | 1370*2700*42/52 |
Size of products (ft*ft) | / | 4*8 |
Cylinder | / | 320*2 or280*4 |
Heating way | / | Steam or thermic oil |
Power | kw | 15kw+7.5kw |
Structure of Laminate Hot Press Machine
Main machine frame
Structure analysis and hot platens

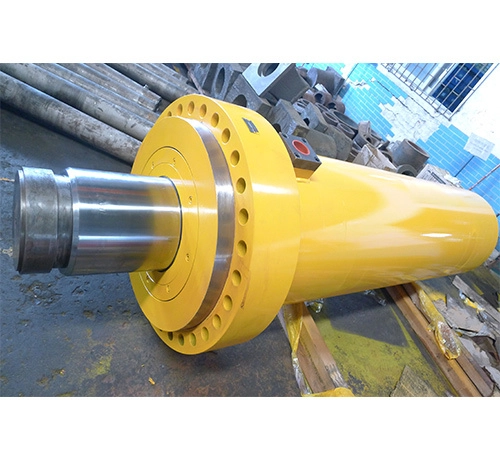

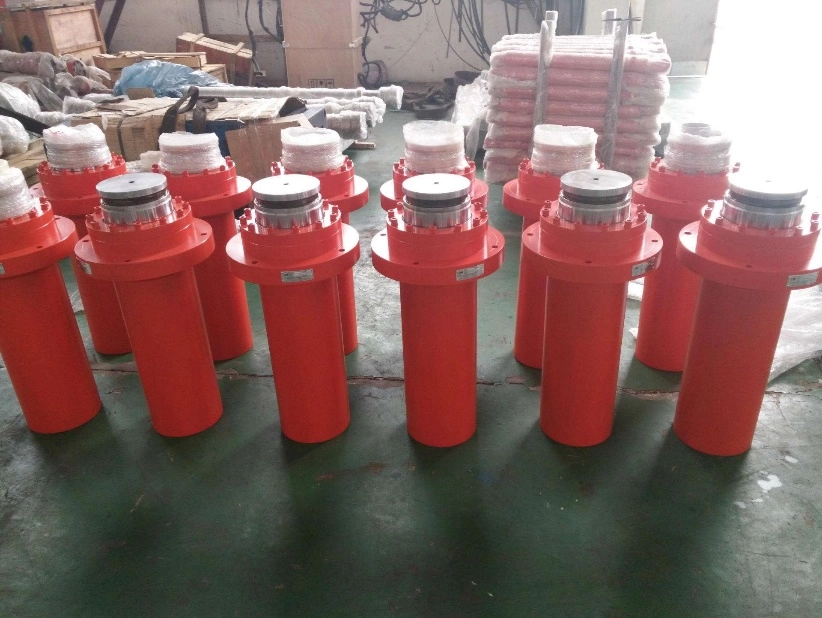

Main hydraulic oil cylinders
Hydraulic station
Briefly Introduction About MuTian
Our Factory

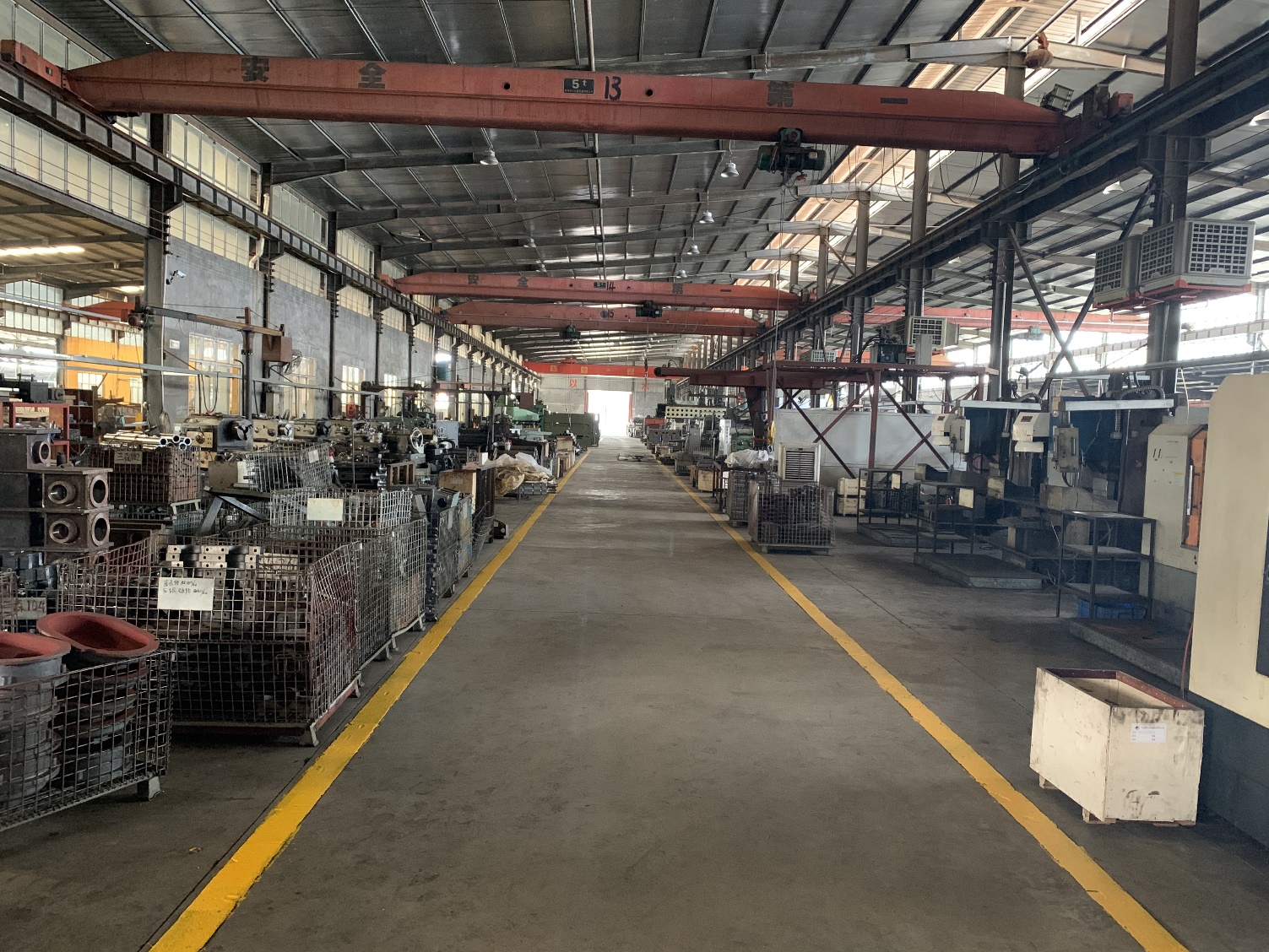

Manufacturing Workshop
Videos
More Introduction of Laminate Hot Press Machine
The laminate hot press machine's working process when veneering can be categorized into five stages: closing, boosting, holding, releasing, and lowering. The primary components of the press include the heating system, hydraulic system, and press body based on their function: supplying heat, providing pressure, and controlling the press's actions.
MuTian Machinery and its technical team have dedicated a considerable amount of time to enhancing the stability of the laminate hot press machine, streamlining the operating system, and refining the overall structure for easier maintenance. These measures have not only guaranteed the ongoing enhancement of the laminate hot press machine's quality, but also the continuous improvement of the final products' quality.
The hot press laminating machine is our primary offering. Applying melamine-impregnated paper to medium-density fiberboard and particleboard surfaces—which are frequently found in furniture, flooring, cabinets, doors, etc.—is its principal use. Quick pressing, more output, and less labor need are some of its advantages.
After more than 20 years of research and development, our organization improved the previous press model and developed a new one. Longer lifespan, easier maintenance, simpler operation, and higher energy efficiency are all advantages of the laminate hot press machine.
Features
Great effectiveness, swift pace, reduced labor, and extended lifespan. After undergoing aging treatment, the steel in our press experiences more evenly distributed stress, resulting in a more rational and reinforced press frame that enhances strength and fatigue life, ultimately extending the frame's lifespan. Simultaneously, the mainframe undergoes CNC machining in order to minimize the likelihood of frame fracture caused by fatigue stress.
The upgraded veneer press features improved thermal insulation and a hydraulic system that is both more stable and faster. The novel synchronous lever mechanism guarantees that the upper and lower sides of the hot platen on the laminate hot press machine remain perfectly parallel and cannot be easily detached. The double-sided sticking laminate hot press machine can produce between 1200 and 1500 sheets per day.
The main features of the hot press machine are:
1. Temperature control:
The temperature control system on the hot press machine enables users to set and modify the temperature for the pressing procedure according to their preference. This guarantees that the substance is warmed up to the right temperature for the best outcomes.
2. Pressure control:
The device is equipped with a pressure control system that permits users to modify the level of pressure utilized while pressing. Achieving the desired level of compression and bonding of the material is crucial.
3. Safety features:
Hot press machines frequently include safety features like temperature and pressure sensors, along with emergency stop buttons. These characteristics aid in avoiding accidents and guaranteeing the user's safety.
4. Durability:
They are built to withstand the high pressure and heat generated during the pressing process. Strong materials like steel or aluminum are typically used in their construction, ensuring their long-lasting durability.
Request a price right now or browse through our entire product selection!
