Hot Press Type Plywood Veneer Dryer

Veneer drying is one of the most important phases of veneer production. The main purpose of the Hot press type plywood veneer dryer is to produce high-quality dried veneer sheets with the highest efficiency. Plywood veneer dryer machine removes water from the wood veneer and decrease moisture by using hot and humid air.
Availability:
Quantity:

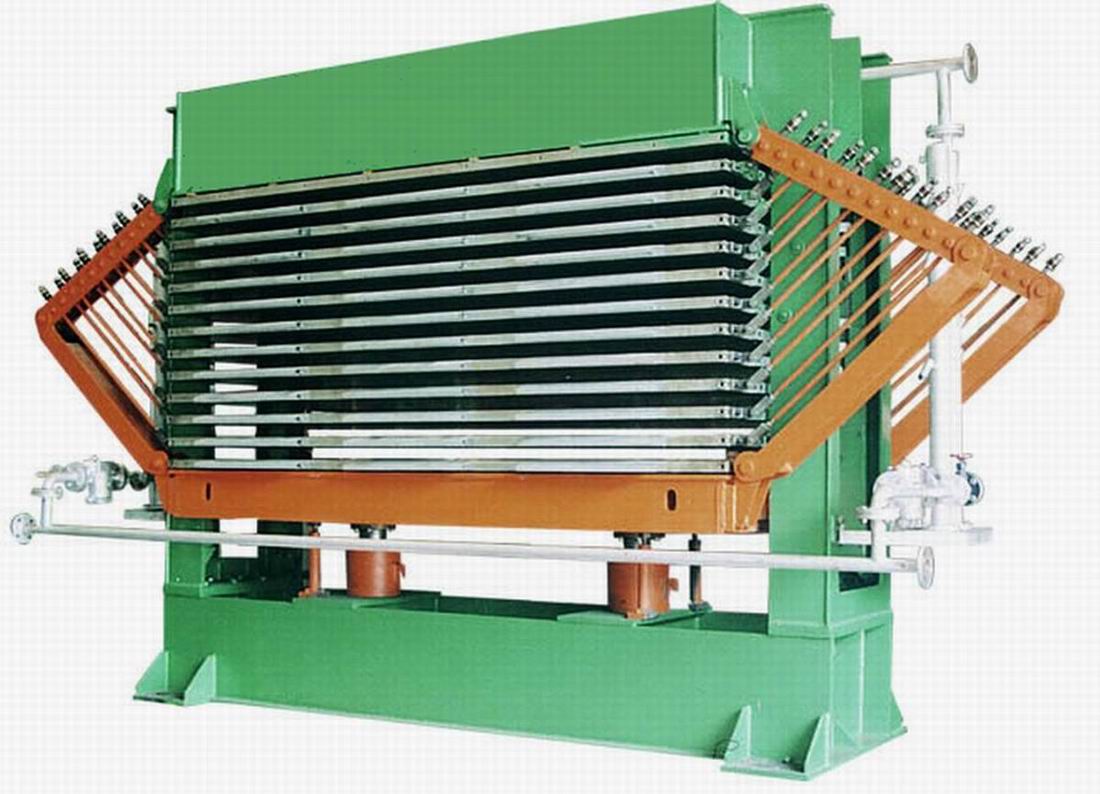

Plywood Veneer Dryer Machine


Plywood Veneer Dryer Machine


Veneer Production


Veneer drying is one of the most important phases of veneer production. The main purpose of the Hot press type plywood veneer dryer is to produce high-quality dried veneer sheets with the highest efficiency. Plywood veneer dryer machine removes water from the wood veneer and decrease moisture by using hot and humid air.


Fuzhou Mutian offers several different Hot press type plywood veneer dryer which is suitable for different plywood production process. By choosing suitable Hot press type plywood veneer dryer, you will get high-quality, even flatness veneer sheet that are ready to be processed as plywood, LVL beams and other artificial panel.


Specification


DESCRIPTION

UNIT

SPECIFICATION

Total Pressure

tons

40

Rated hydraulic pressure

mpa

13

Dimension of hot board

mm

2700*1370*42

Interval of hot board

mm

60

Volume of hot board

p.c.

16

Working layer

layer

15

Cylinder

mm

160 * 2 or 100 * 4

Stroke of cylinder

mm

900

Power

kw

15

Total weight

kg

26000

Overall dimension

mm

5400×1730×3300


Plywood Production Flow Chart


Plywood Production

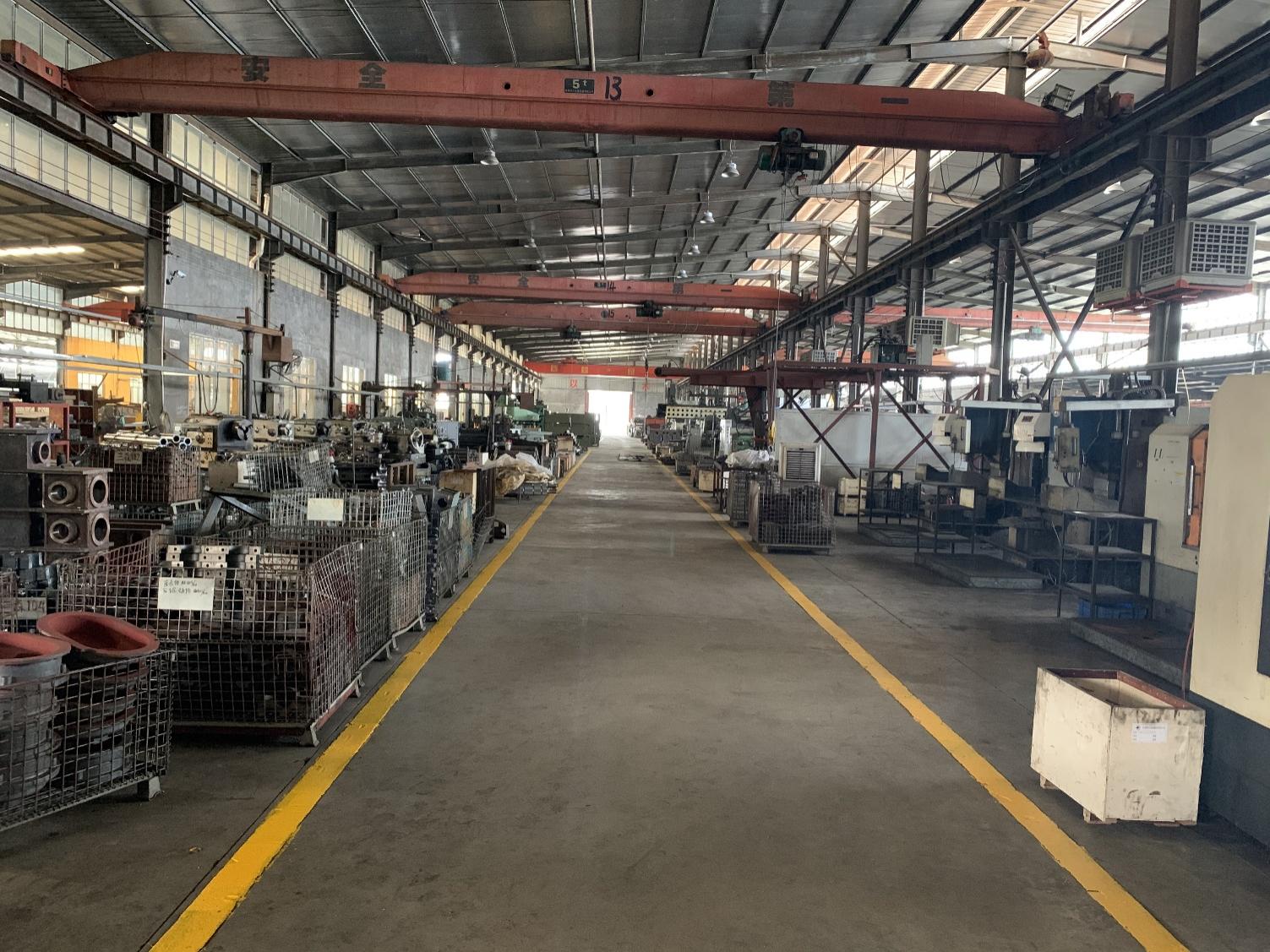

plywood veneer dryer factory

plywood veneer dryer
