Wood Veneer Dryer Machine

Veneer drying is one of the most important phases of veneer production. The main purpose of the Wood veneer dryer machine is to produce high-quality dried veneer sheets with the highest efficiency. Plywood veneer dryer machine removes water from the wood veneer and decrease moisture by using hot and humid air.
Availability:
Quantity:
inquiry Add to Basket

Veneer Dryer Machine Manufacturer


plywood core veneer dryer


Veneer Production


Veneer drying is one of the most important phases of veneer production. The main purpose of the Wood veneer dryer machine is to produce high-quality dried veneer sheets with the highest efficiency. Plywood veneer dryer machine removes water from the wood veneer and decrease moisture by using hot and humid air.


Fuzhou Mutian offers several different Wood veneer dryer machine which is suitable for different plywood production process. By choosing suitable Wood veneer dryer machine, you will get high-quality, even flatness veneer sheet that are ready to be processed as plywood, LVL beams and other artificial panel.


Specification


DESCRIPTION

UNIT


Unit weight

Kg/m3


590

Veneer Thickness

mm



1.7

Initial moisture content

/


70%

Final moisture content

/


8-10%

Heating media

/


Heat-transfer oil

Working temperature

/


170℃

Load ratio

/


85%

Working width

mm


2650mm for mesh belt｜2800mm for roller


Working decks

/


4 decks｜The upper one is mesh belt｜The bottom three is roller

Length of heating section

mm


11*2000=22000

Length of cooling section

mm


2*2000=4000

Roller Transmission speed

m/min


1.5-15

Mesh belt transmission speed

m/min


2.5-25

Drying capacity

m3/h


5.0

Effective hear consumption

100 thousand

kcal/h


250

Motor installed capacity

kw


284

Motor for transmission

kw


11*4=44

Motor for ventilation

kw


15*11=165

Motor for ventilation

kw


4*5.5=22

Compressed air pressure

Mpa


0.4-0.5

Compressed air consumption under free state

m3/min


0.8

Total size （L*W*H）Excluded humidity-dischargingand exhaust device

mm


44880*5385*5050

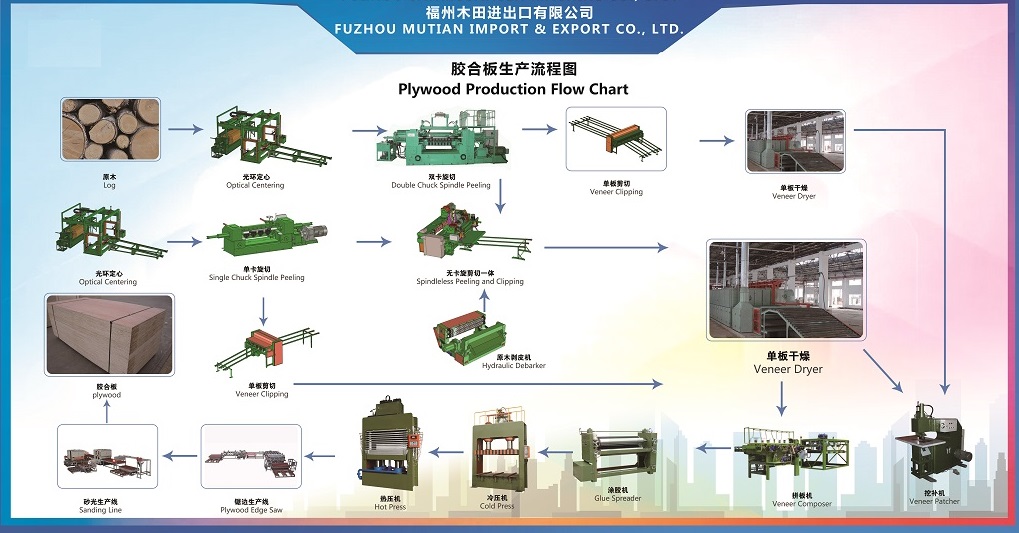

Plywood Production Flow Chart


Best Veneer Dryer MachineVeneer drying
