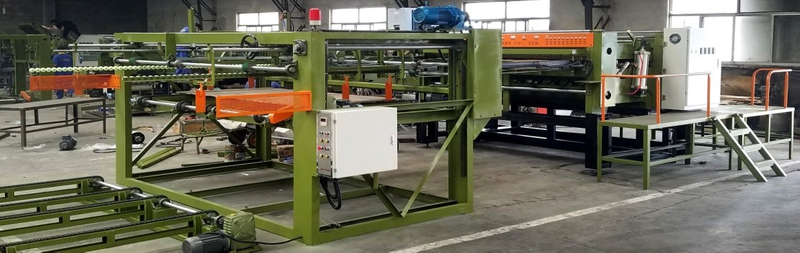

Automatic Core Veneer Jointing Machine

The function of Automatic core veneer jointing machine is to detect width, thickness, holes of the core veneers, then jointing different size wood veneer into plywood size, through high strength thread and hot melt adhesive. This machine can automatic stacking.
Availability:
Quantity:
inquiry Add to Basket

Wood Veneer Composer Machine


Automatic Stacking


The function of Automatic core veneer jointing machine is to detect width, thickness, holes of the core veneers, then jointing different size wood veneer into plywood size, through high strength thread and hot melt adhesive. This machine can automatic stacking.


Easy To Operate And Maintain


The Automatic core veneer jointing machine won’t stuck and overlap the veneers. This machine is easy to operate and maintain. The whole process can be operated by one worker; it is time-saving and efficient & period.


DESCRIPTION

UNIT

Working veneer width

mm

968-1270 mm

Cutting veneer length

mm

1220-2560 mm

Working veneer thickness

mm

1.2-3.6 mm

Length of knife

mm

1400

Output

/

200-250 pcs/hour (4*8ft)

Total power

kw

16.5

Total weight

kg

5500

Overall dimensions

mm

12000*2600*2500

Others

/

4*4-4*8ft adjustableAdjust from 3*6ft to 4*8ft
